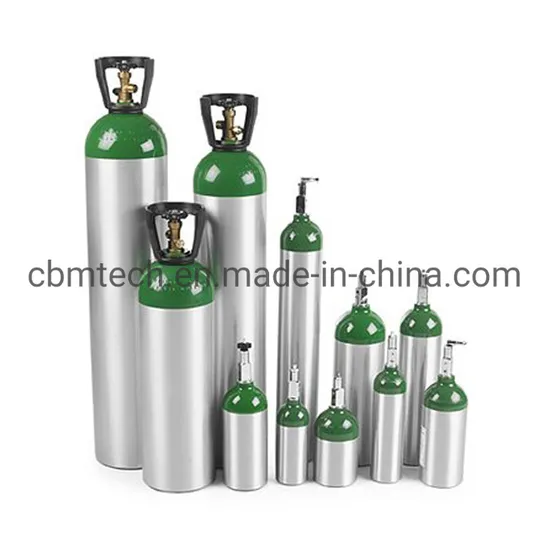

0.5-50L High Pressure Oxygen Aluminum Gas Cylinders

Product Description

Ambulance Breathing Oxygen Cylinders, Lightweight Ambulance Breathing Oxygen Cylinders Made from Aluminum Alloy Al6061 for home oxygen therapy, emergency medical services(EMS), pre-hospital care and hospitals, nursing homes, clinic supply and medical institutions.
Descriptions of Portable medical aluminum gas cylinders with pin index gas valves:
-1) water capacity: 0.28L, 0.7L, 1L, 1.7L, 2L, 2.5L, 2.7L, 3.2L, 4L, 6L, 8L, 10L, 15L, 20L, 40L, 50L and etc;
-2) diameter: 59-232mm;
-3) height: 194-725mm;
-4) weight: 0.4-36kgs;
-5) service pressure: 15MPa, 20MPa
-6) related valve for choice.
Ref. Specification on Medical Liquid Dewar Gas Cylinders

Model Number	Volume (L)	Neck Diameter ≤mm	Outer Diameter ≤mm	Height ≤mm	Empty Weught ≤Kg	Stored in Liquid Nitrogen Days		Evaporation of Liquid Nitrogen/Assumption
						Qualified	Superier	Qualified	Superier
YDS-2	2	30	224	370	2.8	20	25	0.12	0.1
YDS-2	2.5	50	224	370	2.8	20	25	0.12	0.1
YDS-3	3.15	50	224	420	3.4	26	31	0.12	0.1
YDS-6	6	50	305	460	4.5	52	63	0.12	0.1
YDS-10	11.2	50	305	550	6.3	85	110	0.12	0.09
YDS-10B	11.2	50	305	550	6.5	52	64	0.208	0.172
YDS-10-80	11.2	80	305	550	6.3	48	57	0.25	0.2
YDS-10-125	11.2	125	305	550	6.3	25	32	0.4	0.3
YDS-10-210	11.2	210	305	550	7	13	18	0.7	0.6
YDS-15	16	50	365	600	9	134	161	0.12	0.1
YDS-15B	16	50	365	600	9	65	80	0.208	0.172
YDS-15-125	16	125	365	600	9	42	53	0.4	0.3
YDS-20	21	50	365	610	9.5	170	210	0.12	0.1
YDS-30	32	50	446	670	14.5	254	295	0.12	0.1
YDS-30B	32	50	446	670	14.5	159	191	0.24	0.2
YDS-30-80	32	80	446	670	14.5	147	174	0.26	0.22
YDS-30-125	32	125	446	670	14.6	90	112	0.371	0.3
YDS-30-210	32	210	446	670	16	40	50	0.7	0.6
YDS-35	35.5	50	446	695	17	270	310	0.12	0.1
YDS-38-80	35.5	80	446	695	17	159	187	0.25	0.2
YDS-35-125	35.5	125	446	695	17	95	125	0.374	0.309
YDS-50B-50	50	50	500	850	22	160	200	0.385	0.305
YDS-50B-80	50	80	500	850	22	147	189	0.4	0.3
YDS-50B-125	50	125	500	850	22	110	134	0.476	0.4
YDS-50B-210	50	210	500	850	22	50	60	1	0.833
YDS-60B-210	60	210	500	900	32	63	74	1	0.851

BTW, high pressure seamless aluminium air cylinders are adopted to fill various compressed gas, including industrial specialty gases, pure gases, gas mixtures and air. (Such as Argon, Chlorine, Ethane, Helium, Hydrogen, Neon, Nitrogen, Oxygen, Nitrogen monoxide, Nitrous oxide and etc).

No	Specification	Outer Diameter	Water Volume	Length	Weight	Working pressure
1	LW-60-0.5-20-H	60mm	0.5L	285mm	0.59kg	200bar
2	LW-75-0.7-15-H	75mm	0.7L	295mm	0.85kg	150bar
3	LW-82-0.7-15-H	82mm	0.7L	235mm	0.9kg	150bar
4	LW-89-1.0-15-H	89mm	1.0L	269mm	1.2kg	150bar
5	LW-89-1.4-15-H	89mm	1.4L	345mm	1.4kg	150bar
6	LW-108-1.0-15-H	108mm	1.0L	210mm	1.3kg	150bar
7	LW-108-1.4-15-H	108mm	1.4L	264mm	1.6kg	150bar
8	LW-108-2.0-15-H	108mm	2.0L	346mm	2.1kg	150bar
9	LW-108-2.5-15-H	108mm	2.5L	413mm	2.5kg	150bar
10	LW-120-2.0-15-H	120mm	2.0L	320mm	2.7kg	150bar
11	LW-120-2.5-15-H	120mm	2.5L	369mm	3.0kg	150bar
12	LW-120-2.8-15-H	120mm	2.8L	398mm	3.2kg	150bar
13	LW-120-3.2-15-H	120mm	3.2L	437mm	3.5kg	150bar
14	LW-140-4.0-15-H	140mm	4.0L	420mm	4.2kg	150bar
15	LW-140-5.0-15-H	140mm	5.0L	500mm	4.9kg	150bar
16	LW140-6.0-15-H	140mm	6.0L	580mm	5.6kg	150bar
17	LW140-8.0-15-H	140mm	8.0L	741mm	7.2kg	150bar
18	LW140-5.0-20-H	140mm	5.0L	525mm	6.3kg	200bar
19	LW140-6.0-20-H	140mm	6.0L	652mm	7.98kg	200bar
20	LW-159-10.0-15-H	159mm	10.0L	730mm	8.8kg	150bar
21	LW-184-9.0-20-H	184mm	9.0L	575mm	12.0kg	200bar
22	LW-184-10-20-H	184mm	10.0L	620mm	12.9kg	200bar
23	LW-184-11-20-H	184mm	11.0L	665mm	14.2kg	200bar
24	LW-184-12-20-H	184mm	12.0L	710mm	15.4kg	200bar
25	LW-203-12-15-H	203mm	12.0L	567mm	11.8kg	150bar
26	LW-203-20-15-H	203mm	20.0L	873mm	17kg	150bar
27	LW-203-21.3-15-H	203mm	21.3L	962mm	19.9kg	150bar
28	LW-204-12-20-H	204mm	12.0L	610mm	16.5kg	200bar
29	LW-204-15-20-H	204mm	15.0L	735mm	18.7kg	200bar
30	LW-204-20-20-H	204mm	20.0L	940mm	23.4kg	200bar
31	LW-232-29.5-15-H	232mm	29.5L	994mm	30.2kg	150bar
32	LW-232-30.0-15-H	232mm	30.0L	1010mm	30.5kg	150bar
33	LW-232-33.4-15-H	232mm	33.4L	1126mm	31.3kg	150bar
34	LW-232-40.0-15-H	232mm	40.0L	1340mm	36.5kg	150bar
35	LW-232-20.0-20-H	232mm	20.0L	750mm	26.9kg	200bar
36	LW-232-26.0-20-H	232mm	26.0L	921mm	30.7kg	200bar
37	LW-232-30.0-20-H	232mm	30.0L	1076mm	36.4kg	200bar
38	LW-232-31.5-20-H	232mm	31.5L	1096mm	38kg	200bar
39	LW-232-40.0-20-H	232mm	40.0L	1365mm	44.1kg	200bar
40	LW-250-40.0-15-H	250mm	40.0L	1150mm	36.7kg	150bar
41	LW-250-46.4-15-H	250mm	46.4L	1305mm	38.7kg	150bar
42	LW-250-47.5-15-H	250mm	47.5L	1340mm	42.0kg	150bar
43	LW-250-50.0-15-H	250mm	50.0L	1590mm	39kg	200bar
44	LW-250-40.0-20-H	250mm	40.0L	1227mm	46.3kg	200bar
45	LW-250-50.0-20-H	250mm	50.0L	1500mm	56kg	200bar

*About Us:
We can manufacture and supply Seamless Steel Oxygen Cylinders, Portable Oxygen Cylinder Sets, Gas Oxygen Tanks, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Oxygen Cylinder Regulators With Humidifiers, Medical Oxygen Inhalers, Click-style Oxygen Regulators, Wall-type Oxygen Regulators, Reuseable O2 Humidifiers, Disposable Oxygen Humidifiers, Medical Oxygen Cylinders, Aluminum Oxygen Cylinders, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Oxygen Carts, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have:
-1)Original Manuacturer: We have professional equipments like CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of our branch factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =100PCS;
-7)Exporting experience: We have nearly 5 years' experience for exporting;
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Anyway,should you have any intersts or some more info needed on our gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)
URL: http://cbmtech.en.made-in-china.com ; http://www.cbmcare.co

---
