Welcome to visit

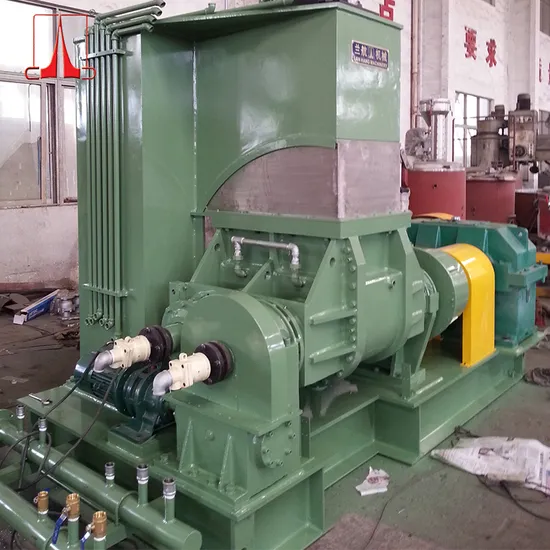

High Performance Rubber Intensive Mixer with Factory Low Cost

US$10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X(S)N-150/30
Automatic Grade
Automatic
Power Source
Electric
Type
Rubber Mixer
Condition
New
Mixer Type
Rubber Mixer
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Lanhang
Model Number
X(S)N-150/30
Voltage
380V
Power(W)
220000
Dimension(L*W*H)
4.4X2.8X3.8 M
Weight
19.5 T
Certification
Ce, SGS, Cnas, Iaf
Transport Package
Wood Pallet & Film Wrap (Intensive Mixer)
Specification
CE, SGS, CNAS, IAF
Trademark
LANHANG
Origin
Jiangsu, China
HS Code
84778000
Production Capacity
200 Set/Sets Per Year

Product Description


Specifications
Intensive Mixer
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Hydraulic Tilting
4. Tangetial Rotor
Why Choose Intensive Mixer Products from Lanhang
1. We're founded in 1992, with more than 20 ye Hydraulic Dispersion Mixer ars' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management
Main Parameters of Our Intensive Mixer

Model

X(S)N- 35/30A

X(S)N-55/30

X(S)N-75/30A

X(S)N-75/30B

X(S)N-110/30

X(S)N-150/30

Working Volume (L)

35

55

75

75

110

150

Rotating Speed (r/min)

30

30

30

30

30

30

Speed Ratio

1:1.2

1:1.2

1:1.2

1:1.2

1:1.2

1:1.2

Loading Type

Front Feeding

Back Feeding

Front Feeding

Back Feeding

Back Feeding

Back Feeding

Discharge Type

Hydraulic Tilting or Extrusion

Tilting Angle

110-115°

Main Motor Power (Kw)

55

75

90

110

185

220

Dimension (m)

3.0x1.8x2.7

3.5x2.2x2.8

3.8x2.2x3.2

3.8x2.2x3.2

4.4x2.8x3.8

4.7x3.0x4.2

Weight (Kg)

8000

10000

11000

11000

14000

19500
Application of Hydraulic Intension Kneader
E.V.A. Rubber & TPR, Soles, Rubber Rollers, Hoses,Belts, Sponges, Sports balls, Vibration Insulators, Elastic Cords, Sealing Materials, Tires, Tapes, aster Batches, Pigment, Ink, Automobile & Electric Rubber Parts, Chemical Industry Compounds.
1. Rubber product for Automobile (Oil seal, Body seal, Gasket, Belt, Hose, Tube)
2. Electric wires (Rubber, Plastic, Wire harness)
3. Belt (Power transmission belt, Conveyor belt)
4. Roll (Rubber, Plastic, Printing, Copying machine)
5. Rubber product for Medical (Plug, Cap, Glove, Dental)
6. Sporting goods (Golf ball, Athletic ball)
7. Food (Chewing gum)

Feature of Lanhang Machinery Hydraulic Intensive Mixer
1. An Automatic temperature and time control system to provide 100% mixing effect.
2. Easy to clean chamber and easy color changing.
3. In 6-10 minutes/batch output equivalent to 2/3 units if mixing roller.
4. Pressurized and sealed mixing chamber to provide high mixing performance and prevent environmental pollution.
5. Easy installation, operation and maintenance to lower the running cost.
Our Services
Intensive Mixer
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
