Ready Mixed Concrete Batching Plant Hzs90 with Js1500 Mixer PLC Control

Product Description

CONCRETE BATCHING PLANT READY MIX CONCRETE MIXING PLANT
Brief Introduction:
Stationary concrete batching plant is widely used for small or medium-scale building construction, bridge and road construction, and prefabrication of concrete products. It has the advantages of less land occupancy, quick installation and convenient transportation.
Features:
1.This bucket type concrete mixing plant adopts twin shaft concrete mixer, it is with strong mixing power, high mixing evenness and high productivity.
2.The mixing blade and liner is made by high wearing-resistance chromium-manganese alloy, which is more durable with long lift span.
3.The PLD series aggregates batching machine have accumulated weighing or pneumatic independent weighing system for options.
4.The electronic weighting system has a buffer device and automatic volume compensation with high accuracy.
5.The complete set concrete batching plant use full auto control models by computer or full auto SIMENS PLC+PC model, meanwhile, we have PLC semi-auto control system or manual control system for options.
1.HZS BUCKET TYPE STATIONARY CONCRETE BATCHING PLANT
PEODUCT PARAMETERS:

Model		HZS25	HZS35	HZS50	HZS75
Capacity (m³/h)		25	35	50	75
Mixer		JS500	JS750	JS1000	JS1500
Aggregate Bin		PLD800	PLD1200	PLD1600	PLD2400
Discharge Height (m)		3.8	3.8	3.8	3.8
Cycle Time (s)		72	72	72	72
Weighing Accuracy (%)	Aggregate	±2	±2	±2	±2
	Cement	±1	±1	±1	±1
	Water	±1	±1	±1	±1
	Additive	±2	±2	±2	±2

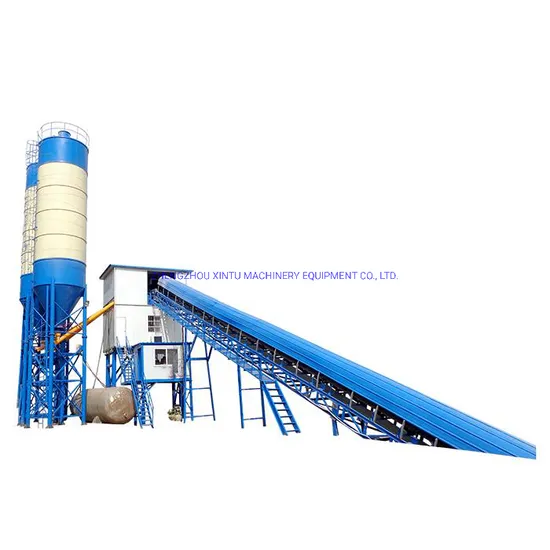

2.HZS BELT TYPE STATIONARY CONCRETE BATCHING PLANT
PEODUCT PARAMETERS:

Theory Productivity(m3/h)	HZS60	HZS90	HZS120	HZS180
	60	90	120	180
Standard Discharging Height(m)	4.0	4.0	4.2	4.2
Mix Cycle Time(s)	60	60	60	60
Total Power(KW)	115	195	220	275
Mixer Model	JS1000	JS1500	JS2000	JS3000
Batching Machine Model	PLD1600 pneumatic	PLD2400 pneumatic	PLD3200 pneumatic	PLD4800 pneumatic
Feeding Method	Belt	Belt	Belt	Belt
Weighing Accuracy	Aggregate	≤2	≤2	≤2	≤2
Cement and Ash Coal	≤1	≤1	≤1	≤1
Water	≤1	≤1	≤1	≤1
Additive	≤1	≤1	≤1	≤1
MOQ	1 set	1 set	1 set	1 set
Delivery Port	Main Port of China

---
