US$138.00-178.00
|
10 Pieces
(MOQ)
|
Basic Info.
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Since Irrigation Centrifugal Pumps
Usage
Pump, Pumps, Sump Pump
Motor Protection Class
IP68
Production Capacity
24000 PCS/Yrs
Packaging & Delivery
Package Size
50.00cm * 60.00cm * 80.00cm
Package Gross Weight
100.000kg
Product Description

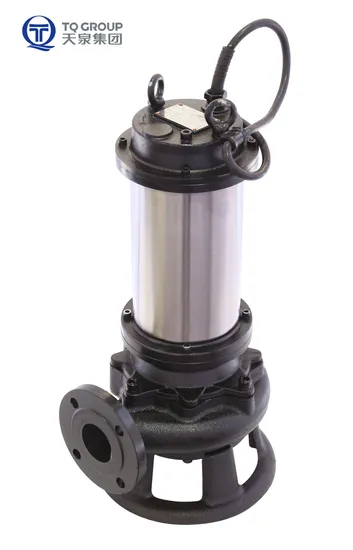

Product Description WQ Series Submersible Sewage Pumps hold a comprehensive optimized design on its hydraulic model, mechanical structure, sealing, and motor cooling and protection. We offer three types of impellers to guarantee non-clogging ability and long service life: double-channel impeller for liquid containing solid particles and short fiber; open impeller for waste liquid containing long fibers; closed impeller for high lifting working condition; stainless impeller for light corrosive liquid. Besides good performance, we have efficient machining equipment and assembly lines to enhance productivity and lower the cost of the pump.
Application
Product Advantage
Product Structural Drawing
Product Parameters
| NO. | Type | Inlet Dia. | Capacity | Head | Motor Power | Speed |
| m³/h | m | kw | r/min |
| 1 | 50WQZG10-10-0.75 | DN50 | 10 | 10 | 0.75 | 2,900 |
| 2 | 50WQZG10-10-1.1 | DN50 | 10 | 10 | 1.1 | 2,900 |
| 3 | 50WQZG15-15-1.5 | DN50 | 15 | 15 | 1.5 | 2,900 |
| 4 | 50WQZG15-22-2.2 | DN50 | 15 | 22 | 2.2 | 2,900 |
| 5 | 50WQZG15-30-3.0 | DN50 | 15 | 30 | 3.0 | 2,900 |
| 6 | 65WQZG25-15-2.2 | DN65 | 25 | 15 | 2.2 | 2,900 |
| 7 | 65WQZG37-13-3.0 | DN65 | 37 | 13 | 2.0 | 2,900 |
| 8 | 80WQZG40-7-2.2 | DN80 | 40 | 7 | 2.2 | 2,900 |
| 9 | 80WQZG40-15-3.0 | DN80 | 40 | 15 | 3.0 | 2,900 |
>>
