| US$1,500.00-1,620.00 | 1 Piece (MOQ) |
| Model | DFT-008CCH2E1-M | DFT-010CCH2E1-M | DFT-012CCH2E1-M | DFT-014CCH2E1-M | DFT-016CCH2E1-M | ||

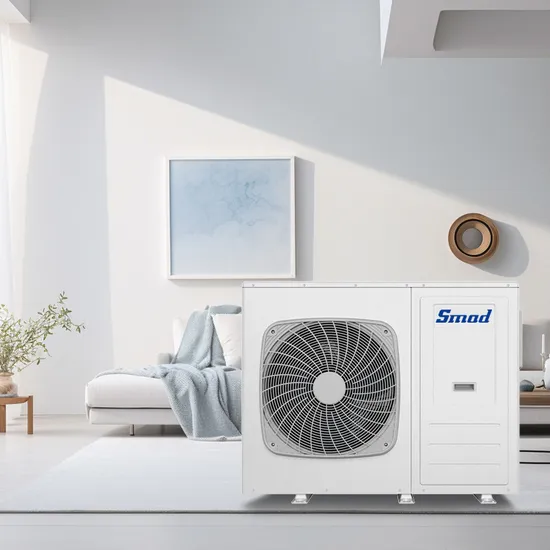

| picture | |||||||
| EXW Price(Tax not included) | $1,620 | $1,620 | $1,736 | $1,982 | $1,982 | ||
| Intended use of the units | Low and medium temperature application | ||||||
| Power supply | V / Ph / Hz | 220-240/1/50 | |||||
| Heating (AT7/6, WT30/35) | Capacity | kW | 8 | 10 | 12 | 14 | 16 |
| Rated power input | kW | 1.62 | 2.08 | 2.45 | 2.74 | 3.25 | |
| COP | kW/kW | 4.95 | 4.8 | 4.9 | 5.11 | 4.92 | |
| Heating (AT7/6, WT47/55) | Capacity | kW | 8 | 10 | 12 | 14 | 16 |
| Rated power input | kW | 2.42 | 3.03 | 3.43 | 4.24 | 5 | |
| COP | kW/kW | 3.3 | 3.3 | 3.5 | 3.3 | 3.2 | |
| Cooling (AT35, WT23/18) | Capacity | kW | 8 | 10 | 11.4 | 14 | 16 |
| Rated power input | kW | 1.63 | 2.15 | 2.78 | 2.74 | 3.33 | |
| COP | kW/kW | 4.9 | 4.65 | 4.1 | 5.11 | 4.8 | |
| Cooling (AT35, WT12/7) | Capacity | kW | 8 | 10 | 11.4 | 14 | 16 |
| Rated power input | kW | 2.5 | 3.33 | 4.07 | 4.52 | 5.51 | |
| COP | kW/kW | 3.2 | 3 | 2.8 | 3.1 | 2.9 | |
| SCOP | Average climate | 35°C | 4.9 | 4.9 | 4.9 | 5.2 | 4.9 |
| Average climate | 55°C | 3.85 | 3.85 | 3.85 | 3.9 | 3.9 | |
| Season space heating energy efficiency class | Average climate | 35°C | A+++ | A+++ | A+++ | A+++ | A+++ |
| Average climate | 55°C | A+++ | A+++ | A+++ | A+++ | A+++ | |
| SEER | Fan coil application | 7°C | 4.5 | 4.5 | 4.5 | 5.1 | 5.1 |
| Cooling floor application | 18°C | 6.3 | 6.5 | 6.2 | 7 | 7 | |
| Refrigerant | Type | - | R290 | R290 | R290 | R290 | R290 |
| Charge | kg | 1.3 | 1.3 | 1.35 | 1.95 | 1.95 | |
| E-Heater backup | kW | 3 | 3 | 3 | 6 | 6 | |
| Sound pressure(1m) | dB | 45 | 49 | 51 | 51 | 51 | |
| Water pump | Rated water flow | m /h | 1.38 | 1.72 | 2.06 | 2.41 | 2.75 |
| Total water head | m | 12.5 | 12.3 | 12 | 11.5 | 11.1 | |
| Available water head | m | 9 | 8.8 | 8.5 | 8 | 7.6 | |
| Maximum working pressure of refrigerant | MPa | 0.85/3.2 | |||||
| Water side safety valve | MPa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Water proof grade | / | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
| Water side connection | in | 1 | 1 | 1 | 1 | 1 | |
| Net dimension | W*D*H | mm | 1312*470*990 | 1312*470*990 | 1312*470*990 | 1312*470*1370 | 1312*470*1370 |
| Package dimension | W*D*H | mm | 1362*567*1167 | 1362*567*1167 | 1362*567*1167 | 1362*567*1560 | 1362*567*1560 |
| Net Weight | 163 | 163 | 169 | 194 | 194 | ||
| Gross Weight | 171 | 171 | 177 | 205 | 205 | ||
| Load qty. 40HQ(pcs) | 66 | 66 | 66 | 33 | 33 | ||
| Ambient temperature range | Cooling | °C | 10-48 | ||||
| Heating | °C | -65 | |||||
| DHW | °C | -73 | |||||
| Leaving water temperature range | Cooling | °C | 5-25 | ||||
| Heating | °C | 24-75 | |||||
| DHW | °C | 30-60 | |||||
| Certificate | CE-EMC/CE-LVD/KeyMark/NF/ROHS/POPS | ||||||
