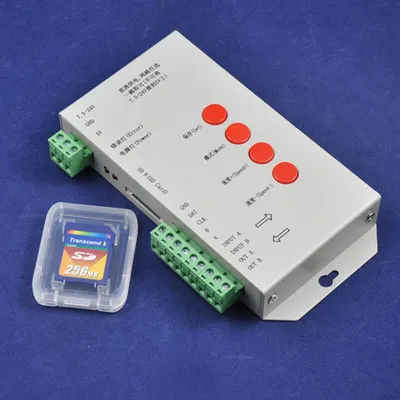

Digital Addressable RGB Ws2811 Ws2812b LED Strip T1000s SD Card Controller

Product Description

Digital Addressable RGB Ws2811 Ws2812b LED Strip T1000s SD Card Controller
Specification:
1 ,T-1000S System features
1,32-256 Gray level,Support software Gamma correction.
2,Support the rules and special-shaped handle.
3,Single-port output,can support 2048 pixels.
4,Off-line(SD Card) control, play back content stored in the SD card.
5,T-1000S store a maximum of 16 programs,copy multiple files to the SD card in order,
after formatting the SD card as "FAT" format.
6,The program must be named in orders . just as :00_1.led, 01_1.led, 02_1.led.
7,Compatible with single line or double line chips.
NOTE :1. When T-1000S controller control less than 512 lamps the frame rate can reach 30fps. When T-1000S
control more than 512 lamps and less than 2048 lamps the frame rate will slow down automatically.
2. T-1000S must use the new software LedEdit 2012.
LED Strip List:

Part Numbe	Color	LED Parameter	Wattage	Size	Power	OEM/Customize?
3528-30LED	R/G/B/Y/W/WW	SMD3528/30LED	2.4W/M	8*1000MM	DC12V/DC24V	YES
3528-60LED	R/G/B/Y/W/WW	SMD3528/60LED	4.8W/M	8*1000MM	DC12V/DC24V	YES
3528-120LED	R/G/B/Y/W/WW	SMD3528/120LED	9.6W/M	8*1000MM	DC12V/DC24V	YES
5050-30LED	R/G/B/Y/W/WW/RGB	SMD5050/30LED	7.2W/M	10*1000MM	DC12V/DC24V	YES
5050-60LED	R/G/B/Y/W/WW/RGB	SMD5050/60LED	14.4W/M	10*1000MM	DC12V/DC24V	YES

5630-60 LED	white	SMD5630/60LED	18W/M	8*1000MM	DC12V/DC24V	YES
2835-60 LED	R/G/B/Y/W/WW	SMD2835/60LED	12W/M	8*1000MM	DC12V/DC24V	YES
2835-120 LED	R/G/B/Y/W/WW	SMD2835/120LED	24W/M	8*1000MM	DC12V/DC24V	YES
2835-240 LED	R/G/B/Y/W/WW	SMD2835/240LED	36W/M	12*1000MM	DC12V/DC24V	YES
3014-60 LED	R/G/B/Y/W/WW	SMD3014/60LED	12W/M	10*1000MM	DC12V/DC24V	YES
3014-120 LED	R/G/B/Y/W/WW	SMD3014/120LED	24W/M	10*1000MM	DC12V/DC24V	YES

Digital RGB led strip (WS2011/WS2812B) Specification/Items:

Business model	Manufacture
Item Model	MS-WS2812B-60
LED Quantity	60PCS/M,300PCS/Reel
IC Type	WS2812B (IC Built in LED)
Wattage	18W/M
Pixel/m	60pixel/m,300pixel/reel
PCB Width	10mm
Length/Reel	5M
Working Voltage	DC5V
Package	Anti-Static Bag
Light Color	Multi-Color, digital RGB,Every LED individual Control
IP Grade	IP20:Non waterproof IP65:Soft glue waterproof IP67:Soft tube waterproof IP68:Soft tube+glue waterproof
Glue Type	Expoy:Non-anti-UV,Stay clean for short time,smell Silicone:Anti-UV,Stay clean,soft,smell-less PU: Anti-UV,Stay clean,soft,smell-less
PCB Color	White ,Black
Certification	CE RoHS
Cut size	DC5V (every LED per cut), DC12V (every 3LED per cut)
Installation	IP20 with 3M Adhesive tape on the back of PCB IP65 with 3M Adhesive tape on the back of PCB IP67 with plastic clip and screw IP68 with plastic clip and screw
	Many other types IC for choose

Addressable LED Strip with ,IC WS2811 WS2812,Individual Pixel Control
A	MS-WS2812B-30	30pcs SMD5050/M	9W/M	DC5V	30 Pixel/M	WS2812B	Dream Color RGB	IP20 IP65 IP67 IP68
B	MS -WS2811-30	30pcs SMD5050/M	7.2W/M	DC12V	10 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
C	MS-WS2811-48	48pcs SMD5050/M	11.5W/M	DC12V	16 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
D	MS-WS2811-60	60pcs SMD5050/M	14.4W/M	DC12V	20 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
E	MS-WS2812B-60	60pcs SMD5050/M	18W/M	DC5V	60 Pixel/M	WS2812B	Dream Color RGB	IP20 IP65 IP67
F	MS-WS2812B-144	144pcs SMD5050/M	43.2W/M	DC5V	144 Pixel/M	WS2812B	Dream Color RGB

Low voltage DC input
Do not hot-line work
expansion screws should be used outdoor installation,so as not to fall off
Keep away from heat
The series less than 4m between lamps
Recommended power supply is more reasonable, which is generally 70-80% of rated power load, in order to avoid long-term high load power supply to damange the power supply and power
Why choose us?
1. We are Professional Led Lighting manufacturer in Shenzhen, China
2. Capacity: 2.5million pcs of storage items produced and exported annually
3. New items every quarter and quick response
4. Delivery: Punctual delivery for more than 95% orders
5. Approved by CE & RoHS.
Our Services
1. Inquiry response: Your enquiries will be replied in 24 hours.
2. Delivery time: Your shipment will be loaded in 3~15 days, depends on quantity.
3. Payment term: T/T,L/C,D/P,D/A,Western union, Paypal.
4. ODM order: Customized design is available.

Application :
1) Building (architecture or home) decoration, kitchen-cabinet lighting, under-cabinet lighting, and bathroom lighting,
2) Car decoration, coves, valences, doorways and other hard-to-light nooks and crannies.
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement signs backlighting
Installation Instructions

---
