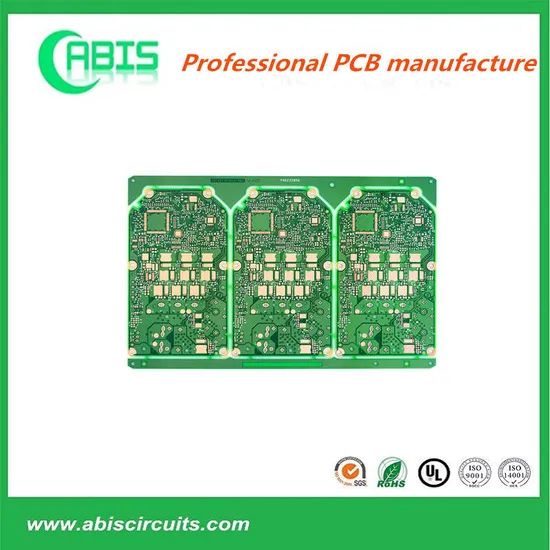

RoHS Custom Quick Turn Electronic Circuit Board Manufacturer PCBA Rigid Flexible PCB EMS PCB

Product Description

RoHS Custom Quick Turn Electronic Circuit Board Manufacturer PCBA Rigid Flexible PCB EMS PCB
Company Brief Introduction
Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters.

Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.

Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer satisfaction and support are what we have been strived for.

Quotation from ABIS
To ensure an accurate quote, be sure to include the following information for your project:
Complete GERBER files including the BOM list Quantities Turn time Panelization Requirements Materials Requirements Finish requirements Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

Product Detail

Item	Spec
Layers	1~20
Board Thickness	0.1mm-8.0mm
Material	FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc
Max Panel Size	600mm×1200mm
Min Hole Size	0.1mm
Min Line Width/Space	3mil(0.075mm)
Board Outline Tolerance	0.10mm
Insulation Layer Thickness	0.075mm--5.00mm
Out Layer Copper Thickness	18um--350um
Drilling Hole (Mechanical)	17um--175um
Finish Hole (Mechanical)	0.10mm--6.30mm
Diameter Tolerance (Mechanical)	0.05mm
Registration (Mechanical)	0.075mm
Aspect Ratio	16:01
Solder Mask Type	LPI
SMT Mini. Solder Mask Width	0.075mm
Mini. Solder Mask Clearance	0.05mm
Plug Hole Diameter	0.25mm--0.60mm
Impedance Control Tolerance	10%
Surface finish	ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold
Soldermask	Green/Yellow/Black/White/Red/Blue
Silkscreen	Red/Yellow/Black/White
Certificate	UL, ISO 9001, ISO14001, IATF16949
Special Request	Blind hole, Gold finger, BGA, Carbon ink, peekable mask, VIP process, Edge plating, Half holes
Material Suppilers	Shengyi, ITEQ, Taiyo, etc.
Common Package	Vacuum+Carton

Lead Time

Category		Q/T Lead time		Standard Lead Time	Mass Production
2 Layers		24hrs		3-4 working days	8-15 working days
4 Layers		48hrs		3-5 working days	10-15 working days
6 Layers		72hrs		3-6 working days	10-15 working days
8 Layers		96hrs		3-7 working days	14-18 working days
10 Layers		120hrs		3-8 working days	14-18 working days
12 Layers		120hrs		3-9 working days	20-26 working days
14 Layers		144hrs		3-10 working days	20-26 working days

Our Certification:

Product We Made:
Quality Control Flow:
Exhibition show:
FAQ:
Q1:When can I get the quotation?A:We usually quote with 1 hour after we get your inquiry. If you are very urgent, please call us or tell us in your email.
Q2:I am a small wholesaler, do you accept small order?A:It's no problem. If you're small wholesaler, we would like to grow up with you together.Q3:How many days will samples be finished? And how about the mass production?A:Generally 2-3 days for samples making. The lead time of mass production will depend on the order quantity and the season you place the order.Q4:If I order big quantity, what's the good price?A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.Q5: How can we know the processing about PCB order?A: Each Customer will have a sale to contact with you. Our working hours: AM 9:00-PM 19:00(Beijing Time) from Monday to Friday. We will reply your email as soon as quickly during our working time. And you also could contact with our sales by cellphone if urgent.Q6:Can I have samples to test?A: Yes, we are pleased to supply module samples to test and check quality, mixed sample order is available. Please note buyer should pay for shipping cost.Q8:If all pcb , PCBAs will be tested before delivery if we provide the function testing method?A:Yes, we ensure that each piece of pcb, PCBA will be tested before shipment, we ensure the goods we sent with good qualityQ9:What is the shipping method?A:We suggest you using DHL, UPS, FedEX, TNT forwarder.Q10:How about the payment terms?A:By T/T, Paypal, Western Union, etc.


ABIS cares every your order even 1 piece

---
