Advanced Plastic Waste Recycling Machine for Woven Bags

Product Description

Applicable Material:
Our versatile machine caters to a wide range of materials including PE/PP Films, Industrial Films, City garbage film, PP woven bags, and even Raffia jumbo bags.
Introduction

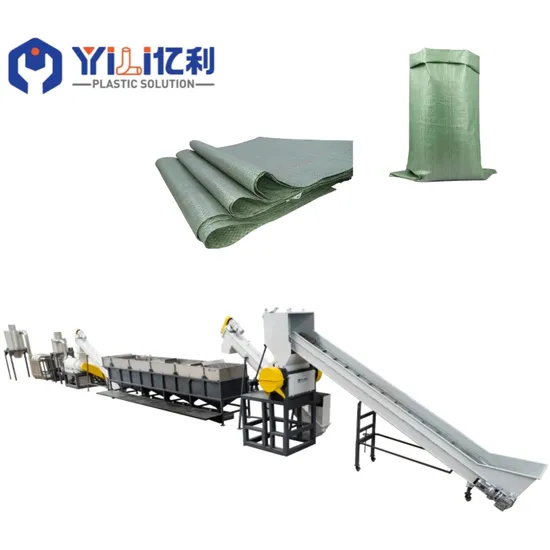

The waste plastic film recycling and comprehensive washing line crafted by YILI Machinery can expertly treat diverse kinds of plastic soft materials, such as PE or PP plastic film, PP woven bags, and an array of waste materials including agricultural films, soft drip irrigation pipes, industrial packing films, and supermarket packing films, to name a few. This sophisticated production line integrates essential components such as a shredder, crusher, frication washer, floating tank, and squeezer, boasting capacities ranging from 300 to an impressive 1500 kg/hr. Our film washing line guarantees meticulous and effective decontamination of waste films using both cold and hot washing systems, incorporating leading-edge recycling technologies. The resultant high-quality products can be utilized standalone or blended with other materials for reprocessing, even suitable for creating new film applications.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
QX300	300-400	160	0.5	3
QX500	500-600	200	1.2	3
QX1000	800-1000	250	3	4
QX1500	1300-1500	325	4	4
QX2000	1800-2000	415	4	4

Tech Features & Advantages Our fully automated production line features compact processing, exceptional production efficiency, and impeccable cleanliness; Effortlessly separates mud, sands, and other impurities from films and bags; Equipped with advanced pre-treatment systems like Pre-washer and Label processing, it can significantly enhance the quality of the final product; Incorporates state-of-the-art centrifugal dewatering and squeezing technology; Offers easy maintenance, energy efficiency, and a durable lifespan
Main Machines For the line
Belt conveyor

Choose from light or heavy duty belt conveyors. Features a gearbox motor and side walls to prevent material spillage. Optional installation of metal detectors enhances functionality.
Shredder Our shredder is ideal for processing large raw materials such as plastic drums, tanks, and lumps. It performs preliminary grinding before the material is further processed by a secondary crusher, reducing sizes to less than 12mm for optimal purity. YILI offers a variety of shredders with diverse capacities and capabilities to cater to specific customer needs.
Crusher
Designed to crush materials into smaller, more manageable pieces, our crusher integrates water to clean materials and cool blades during operation. This process enhances washing efficacy and facilitates easy packaging of the final product.
Frication Washer The high-speed frication washer efficiently cleans plastics by removing contaminants, dirt, and grease, preparing the material for further cleaning in the floating tank.
Floating tank
This module effectively separates sediment and metal from materials. It features washing wheels of varied designs for specific functions, all controlled via inverter speed settings. With a magnetic valve at the base, it timely discharges dirt. The tank is constructed from robust stainless steel for longevity.
Centrifugal Dryer Our horizontal centrifugal dryer offers outstanding drying performance while being energy efficient. Its self-washing grid mesh, activated by timer, ensures both washing and drying of plastic flakes.
Hot air pipeline heating
