High Reliability Im18 DC 2 Wires Flushinductive Proximity Switch Sensor

Product Description

Product Description IM series proximity sensor
Features of metal cylindrical proximity sensor
Reverse polarity protection;
Short-circuit protection (M8,M12,M18,M30 DC type);
Long-life & high reliability;
Yellow Led indicates working status of sensor;
Economical and easy to operate;
Alternatives for mini switch and limit switch;
Delay at power-up, guard against false pulse;

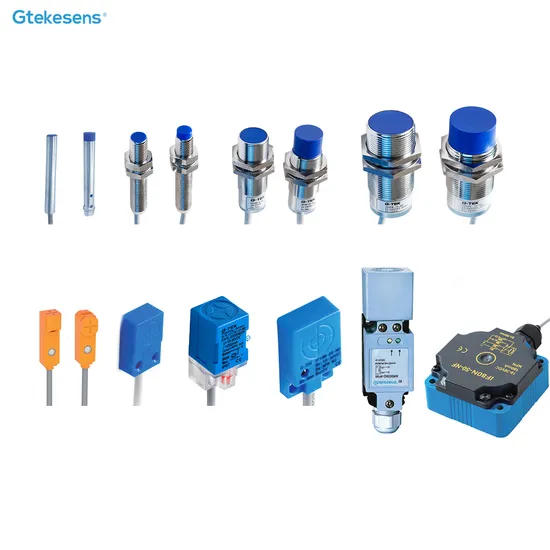

Detailed Photos
Product Parameters

Proximity sensor	IM18B	IM18N
Model	IM18B-05-DO IM18B-05-DC	IM18N-08-DO IM18N-08-DC
Output	Flush		Non-flush
Sensing Distance	5mm±10%		8mm±10%
Hysteresis	Less than 15% of sensing distance
Detecting Object	18mm×18mm×1mm (Fe360 carbon steel)		24mm×24mm×1mm(Fe360 carbon steel)
Supply Voltage	10-30 VDC
Leakage Current	Max.0.8mA
Voltage Drop	Max.2.5V
Switch Frequency	350Hz		200Hz
Temperature Influence	Between -25ºC~70ºC,less than ±10% sensing distance at+20ºC
Control Output	Transistor output , resistive load Max.100mA
Indication Light	Operating indicator (Yellow)
Working Temperature	-25ºC~70ºC(Non-freezing)
Storage Temperature	-30ºC~80ºC(Non-freezing)
Ambient Humidity	35~95%RH
Circuit Protection	Over voltage protection, short-circuit protection, reverse polarity protection
Protection Rating	IP67(IEC)
Cable Standard	Φ5. 2×0.3 mm ²

Product Series	Output Mode	Installation Mode	Product Model	Supply Voltage	Sensing Distance	Housing	Connecting Mode
IM18	DC2 wire	Flush	IM18B-05-DO	10~30V DC	5mm	stainless steel	cable
			IM18B-05-DC
		Non-flush	IM18N-08-DO		8mm
			IM18N-08-DC
IM18	DC3 wire	Flush	IM18B-05-NO	10~30V DC	5mm	stainless steel	cable
			IM18B-05-NC
			IM18B-05-PO IM18B-05-PC
		Non-flush	IM18N-08-NO		8mm
			IM18N-08-NC
			IM18N-08-PO
			IM18N-08-PC
IM18 LONG DISTANCE	DC3 wire	Flush	IM18B-08-NO	10~30V DC	8mm	stainless steel	cable
			IM18B-08-PO
		Non-flush	IM18N-12-NO		12mm
			IM18N-12-PO
IM18	AC2 wire	Flush	IM18B-05-AO	24~240V AC	5mm	stainless steel	cable
			IM18B-05-AC
		Non-flush	IM18N-08-AO		8mm
			IM18N-08-AC

Installation Instructions
Product Application
Company Profile Tianjin G-TEK Sensor Technology Co., Ltd. is located in Gaotai Science and Technology Park, Xiqing District, Tianjin and it is a technology-based enterprise specialized in R&D, production and customization of intelligent sensor system solutions. The company manufactures laser radar, TOF3D camera, laser ranging sensor, measurement and safety light curtain, photoelectric sensor, proximity switch and other products with core technology, serving intelligent transportation, logistics automation, factory automation, robot, intelligent security and other fields.

---
