US$16.00-20.00
|
100 kg
(MOQ)
|
Basic Info.
Model NO.
Able-Strong Rope
Abrasion Resistance
Excellent
Color Available
Purple,Amsteel Blue,Yellow,Grey,Orange
Transport Package
Wooden Spool, Plastic Reel, Coil
Specification
Dia. 3mm-120mm
Production Capacity
500000kg/Year
Product Description

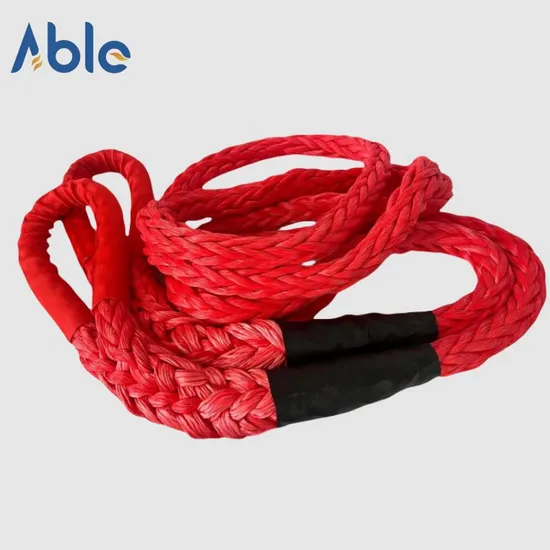

HMPE 12 Strand Rope
HMPE ,also known as UHMWPE ,is a high modulus polyethylene fiber with a very high strength to weight ratio. HMPE rope is the world's strongest rope for its weight and is an excellent wire rope replacement with extremly low stretch and excellent wear resistance
Features:
Specific gravity: 0.98 float
Melting point: 147°C
Elongation at break: 2%-3%
Water absorption: none
UV resistance: Excellent
Abrasion resistance: Excellent
Chemical resistance: Excellent
Product Parameters:
| Diameter | Weight | Tensile Strength |
| Inch | mm | Lbs/100ft | Kg/100m | Lbs | KN |
| 5/32 | 4 | 0.75 | 1.1 | 3600 | 15.7 |
| 1/4 | 6 | 1.7 | 2.5 | 8000 | 35.3 |
| 5/16 | 8 | 2.7 | 4 | 14300 | 63.7 |
| 3/8 | 10 | 4.1 | 6.1 | 22900 | 102 |
| 1/2 | 12 | 5.8 | 8.7 | 33000 | 147 |
| 9/16 | 14 | 7.9 | 11.8 | 44900 | 200 |
| 5/8 | 16 | 10.2 | 15.2 | 58400 | 260 |
| 3/4 | 18 | 13.1 | 19.5 | 67460 | 300 |
| 13/16 | 20 | 17 | 25.3 | 76500 | 340 |
| 7/8 | 22 | 18.9 | 28.1 | 101200 | 450 |
| 1 | 24 | 22.2 | 33 | 116850 | 520 |
| 1-1/16 | 26 | 26.2 | 39 | 134900 | 600 |
| 1-1/8 | 28 | 30.2 | 45 | 153000 | 680 |
| 1-1/4 | 30 | 34.3 | 51 | 173000 | 770 |
| 1-5/16 | 32 | 39 | 58 | 191140 | 850 |
| 1-3/8 | 34 | 43.7 | 65 | 216000 | 960 |
| 1-1/2 | 36 | 48.4 | 72 | 233690 | 1040 |
| 1-9/16 | 38 | 53.8 | 80 | 261020 | 1160 |
| 1-5/8 | 40 | 59.5 | 88.5 | 283500 | 1260 |
| 1-3/4 | 44 | 71.2 | 106 | 328480 | 1460 |
| 2 | 48 | 84 | 125 | 382500 | 1700 |
| 2-1/8 | 52 | 98.1 | 146 | 443130 | 1970 |
| 2-1/4 | 56 | 114 | 170 | 508380 | 2260 |
| 2-1/2 | 60 | 130 | 193 | 568790 | 2530 |
| 2-5/8 | 64 | 147.8 | 220 | 639340 | 2840 |
| 2-3/4 | 68 | 166.7 | 248 | 713190 | 3170 |
| 3 | 72 | 186.8 | 278 | 791460 | 3520 |
| 3-1/4 | 80 | 230.5 | 343 | 967380 | 4300 |
| 3-5/8 | 88 | 334 | 497 | 1390240 | 6180 |
Applications:
Vessel mooring ,Lifting sling and cables ,Towing line ,Tug messenger line ,Winch rope ,Safety rope ,Trawl line
Finshery ,Agriculture ,Aquaculture ,Halyard ,Sails and rigging in yachting
Packing & Shipping:
We can provide various packing like wooden spool,plastic reel,wooden box,bag coil,hank, big reel,etc. Special packing requirements can be customized,just let us know.
Other products range:
Able cordage continuously explore new technoloy to improve ropes' safety performance and durability.We produce a wide range of rope types covering nylon,polyester ,pp,cotton,uhmwpe,manila,sisal ropes with constructions 3 strand,4 strand,6 strand,8 strand ,12 strand, double braided,solid braid,hollow braids.
Production Facilities: Trade shows:
Various Services for Vessels: We started at rope manufacturing and now can also provide quality services for vessels.Our service covers: 1. On/off bunker oil survey
2. Bunker oil quality inspection
3. Rope and food supply
4. Rope condition inspection
Quality always comes first here,your satifaction is our eternal pursuit,if any assitance we could offer,please feel free to contact us ! Thank you!
>>
