US$7,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
Universal Milling Machine
Product Name
Horizontal Universal Milling Machine
Machine Type
Swivel Head Milling Machine
Keyword
Milling Machine Manual
Spindle Speed
35-1600 Rpm
Transport Package
Plywood Cases, Plastic Cover Inside.
Specification
2070x2025x2020
Production Capacity
100sets/Month
Product Description

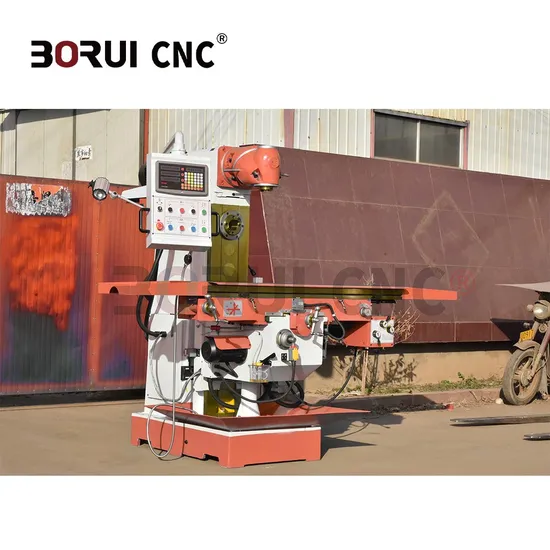

Universal 360 Degree Rotary Head Milling Machine X6436 for Metal Product Description
The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:
Specifications
| Units
| X6436
|
Table size
| mm
| 1500x360
|
Table travel
| mm
| 1000x320x500
|
T-type slot (numbers / width /space)
| mm
| 3-18-80
|
Horizontal spindle center to table surface
| mm
| 0-450
|
Spindle taper
|
| ISO50
|
Spindle speed range(steps)
| rpm
| 48-1660(V) , 60-1800(H)
|
Table power feed speed range
| mm/min
| 22-420(X) 22-393(Y) 10-168(Z)
|
Swivel angle of milling head
| °
| 360
|
Table rotate angle
| °
| 35
|
Spindle motor power
| KW
| 4
|
Machine size
| mm
| 2070x2025x2020
|
Machine weight
| Kg
| 2480
|
Details Display
