| Negotiable |
4,000 Pieces
(MOQ)
|
Basic Info.
Charging Type
Non-rechargeable
Battery Type
LiMnO2 Battery
LiMnO2 Battery Model
Cr2430
Packaging
Industrial Bulk Packaging
Applications
Remote Control, Scales, Calculator, Computer Mothe
Certificates
ISO9001, Reach, RoHS, SGS, Un38.3
Transport Package
Standard Export Packaging
Specification
D24.5*3.0mm
Trademark
Henli Max, OEM, ODM
Production Capacity
400000000 Pieces/Year
Product Description

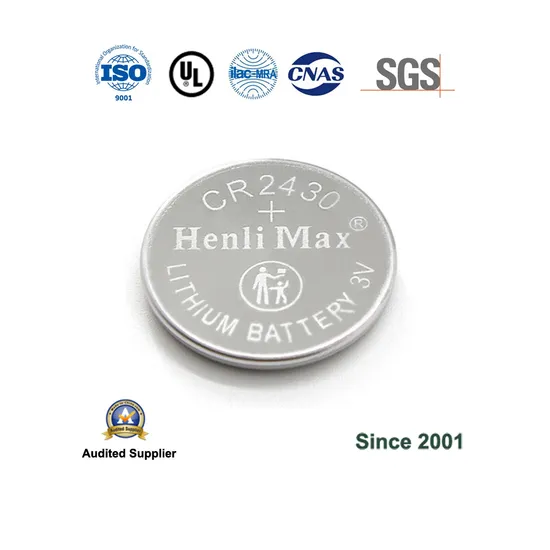

CR2430
Battery Outline Dimensions
Packaging and Marking
| Dimension of box | Net weight | Gross weight |
| 36×30×19.5cm | 18KG | 20KG |
Normal package: 4000 pcs per box.
CR2430 Discharge Curves
Model | Discharge Characteristics(23ºC) | Dimensions |
Weight
(g) |
Nominal
Voltage
(V) |
Nominal
Capacity
(mAh) | Recommended Continuous Drain |
Diameter
(mm) |
Height
(mm) |
High-drain
Pulse
(mA) | Standard Current
(mA) |
| CR927 | 3.0 | 32 | 3 | 0.1 | 9.5 | 2.7 | 0.7 |
| CR1025 | 3.0 | 30 | 5 | 0.1 | 10.5 | 2.5 | 0.8 |
| CR1130 | 3.0 | 40 | 5 | 0.1 | 11.6 | 3.0 | 1.0 |
| CR1212 | 3.0 | 20 | 5 | 0.1 | 12.5 | 1.2 | 0.6 |
| CR1216 | 3.0 | 24 | 5 | 0.1 | 12.5 | 1.6 | 0.7 |
| CR1220 | 3.0 | 36 | 5 | 0.1 | 12.5 | 2.0 | 0.8 |
| CR1225 | 3.0 | 50 | 5 | 0.1 | 12.5 | 2.5 | 0.9 |
| CR1616 | 3.0 | 55 | 5 | 0.2 | 16.0 | 1.6 | 1.2 |
| CR1620 | 3.0 | 70 | 5 | 0.2 | 16.0 | 2.0 | 1.3 |
| CR1625 | 3.0 | 85 | 5 | 0.2 | 16.0 | 2.5 | 1.8 |
| CR1632 | 3.0 | 125 | 10 | 0.2 | 16.0 | 3.2 | 2.3 |
| CR2016 | 3.0 | 90 | 10 | 0.2 | 20.0 | 1.6 | 1.7 |
| CR2025 | 3.0 | 165 | 15 | 0.5 | 20.0 | 2.5 | 2.4 |
| CR2032 | 3.0 | 220 | 15 | 0.5 | 20.0 | 3.2 | 3.0 |
| CR2330 | 3.0 | 250 | 20 | 0.5 | 23.0 | 3.0 | 4.0 |
| CR2354 | 3.0 | 560 | 20 | 1 | 23.0 | 5.4 | 5.8 |
| CR2430 | 3.0 | 300 | 20 | 1 | 24.5 | 3.0 | 4.5 |
| CR2450 | 3.0 | 600 | 25 | 3 | 24.5 | 5.0 | 6.5 |
| CR2477 | 3.0 | 1000 | 20 | 1 | 24.5 | 7.7 | 9.5 |
| CR3032 | 3.0 | 550 | 25 | 1 | 30.0 | 3.2 | 6.8 |
Battery processing service
According to special needs of terminal products, we can provide supporting battery processing services including Blister Pack, solder wires,solder tabs.
Discuss with us before making an order, we can help you find out the batteries that suit your products properly.
Company Profile
Changzhou Yufeng Electrical Co., Ltd was founded in 2001, and is a high-tech enterprise specialized in the R&D, production and sales of 3V primary lithium cells.Our company is located in Changzhou Photo-voltaic industrial Park, covering an area of 26000m², with more than 300 staffs, and has become the Top 2 3V Lithium button battery company in the field of industry in China. Now we produce more than 20 models of lithium button cells, with more than 400million pcs annual output.
In the past years, our company has been focusing on the technology innovation and production management. We registered 3 brands which are "Henli Max", "NSN", and "SUYU MAX" to better match different discharge characteristics requirements of various products.
Our company adhere to the key values of " Foresight, Innovation, Responsibility". We dedicate to providing high quality batteries and great service to you.
Factory
Fully-automatic producing lines
Certificates
Q&A
Q1: Do you offer OEM or ODM service?
A1: Yes, we provide sufficient services in both products of our brands and OEM/ODM products.
Q3: What is the packaging of your products?
A3: Basically we provide industrial bulk packaging, but we can also do blister card packaging and other customized packaging as client's requests.
Q4: How long it takes to ship the goods after PO?
A4: Usually 15~20 days after PO confirmed till goods ready for shipment.
Q5: Can you send some samples if possible?
A5: Yes, please send us the address and we will arrange samples for you for quality test before mass production.
Q6: How do you take payment?
A6: Most of time TT 30% in advance and 70% before shipment.
