Good Quality Hydraulic Single Sprocket Anchor Windlass with Efficient Diesel Single Wheel

Product Description

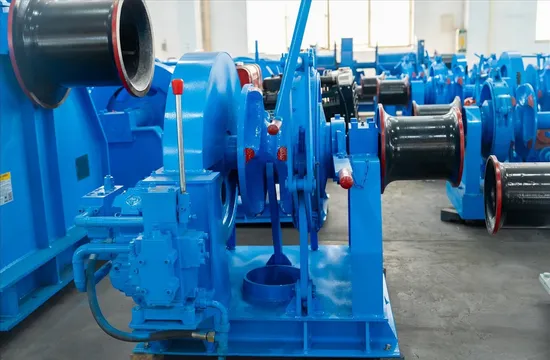

Marine anchor windlass is a machine that restrains and manipulates the anchor chain and/or rope on a boat, allowing the anchor to be raised and lowered.A notched wheel engages the links of the chain or the rope.A "trawl windlass" is a similar machine that restrains or manipulates the trawl on a commercial fishing vessel. The trawl is a sort of big fishing net that is wound on the windlass. The fishermen either let-out the trawl or heaves-up the trawl during fishing operations. A brake is provided for control and a windlass is usually powered by an electric or hydraulic motor operating via a gear train.
Specifications:
1) Drive: Hand/electric / hydraulic
2) Configuration: single in vertical / horizontal arrangement / double gypsies in horizontal
3) Chain size: 16 mm to 127 mm
4) Chain speed: complying with ISO requirements
5) Clutch: manually operated dog clutch
6) Brake: manually and hydraulic operated band brake.
7) Control: local control
8) Paint: as per your specifications.

Electric anchor winch windlass for marine use
Drive	Electric/Hydraulic /Manual Driven/ Diesel
Configuration	Single/Double Gypsies and Warping End
Gypsy Size	U2 or U3 from 17.5mm to 127mm
Working Load	1 Tones to 350 Tones
chains Speed	Complying With ISO/Classification Society Requirement
Clutch	Manual /Hydraulic Operated Jaw Clutch
Brake	Spring Applied Pneumatically or Hydraulic Released Band Brake
Release	Emergency Quick Release
Control	Local Control Console and remote Control Panel
Options	Drag Brake System ; Length and Tension Monitoring Systems Stainless Steel Brake Drum
Our Advantages:	1 High quality with competitive prices 2 Much experience in production and exportion 3 Special design for different clients. 4 Short delivery time if clients need urgently Certificate: ABS, GL, LR, BV, KR,NK,DNV, CCS,etc..

Jianhu Jixin Trading Co., LTD., founded in 2024 and headguartered in Yancheng City, is a cross-border e-commerce enterprise focusing on foreign trade industry, and its market positioning is to serve overseas customers. The company's products cover tilage machinery, agricultural and forestry horticultural weeding, seeding and fertlizatior machinery, paddy field agricultural machinery and other series of products. The company specializes in the design and production of 12~630kn.m Marine steering gear ,all kinds of Mlarine windlass,anchor winch,mooring winch capstan ,Marine crane,mooring rope.

---
