Product Description
Product Description

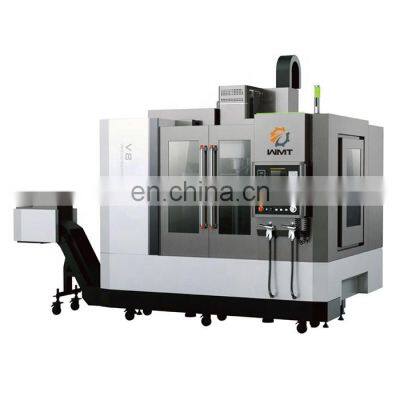

Products DescriptionProduct ApplicationV8 is our new type of high speed CNC machining center based on Taiwan technology, which has more advantages on operation andcapabilities compared with like products. Applied with high rigid C design on structure, it also has been done with reinforcementon machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply withtwo types of rolling guide way: ball bearing and roller guide way, which is optional to customer’s requirements. Z axis appliesroller guide way, which enables the machine to be with high rigidity, low noise, and small friction. Thus the machine can do rapiddisplacement and obtain circular accuracy. Equipped with air tank, the water can be drained out manually. Spindle is connecteddirectly, and the highest speed is 12000RPM, which are a good choice for machining of high accuracy and efficiency.SpecificationV8WorktableWorktable size500×1000mmT-slot （N×W×D）5×18×100mmDistance from the table to the ground850mmTravelX axis travel850mmY axis travel500mmZ axis travel580mmMachining rangeDistance from spindle center to column front623mmDistance from spindle end to work table120～700mmMachine dimensionL×W×H2540×2391×2700mmMachine weightMax. load bearing of worktable500kgsMachine weight6200kgsSpindleSpindle hole taperBT40Spindle power7.5/11kwMax. spindle speed12000rpmSpindle sleeve diameterφ140mmFeedMax. feed speed15000mm/minRapid feed speed (X/Y/Z)48/48/36m/minTool MagazineTool magazine capacity24TMax. length of tool300mmTool change time1.5sPositioning accuracy (National standard)Positioning accuracy (X/Y/Z)0.008mmRe-positioning accuracy(X/Y/Z)0.005mmMy company
Company Profile
Jingjiang Fuji Technology Co., Ltd.
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
