CNC Machine Lathe of Lathe Chuck 200mm

Product Description

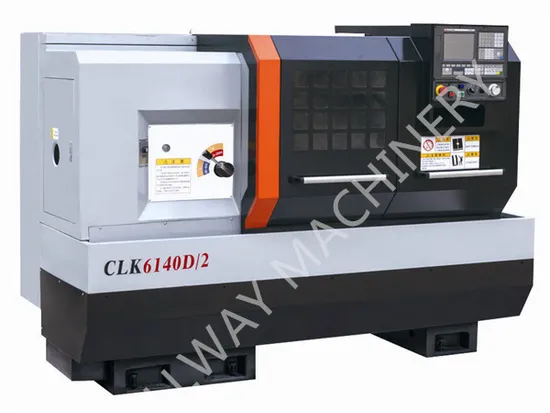

Cnc Machine Lathe of lathe chuck 200mm CLK6140D-2
1.Introduction and use:
Electromechanical integration with 2-shifts of high /low speed, once programming can automatically realize machining such like cylindrical,inner hole, thread, complex surface.Widely used in machinery, automobiles, motorcycles, oil pump, nozzle, chemical industry, instrument, medical and other parts of mechanical processing.
2. SPECIFICATION

CLK6140D/2 Items		UNIT	750		1000
Max. swing over bed		mm	400
Max. swing over cross slide		mm	170(standard)/option:150( with T-slot)
End surface of standard chuck (doesn't contain claws) to enter of tailstock		mm	680		1000
X/Z axis travel		mm	220/550		220/860
Z direction guideway span		mm	320
Spindle bore		mm	51(standard manual chuck )
Code for spindle nose			A2-6
Spindle nose tape		No	Morse 6
Spindle speed range		rpm	2 shifts:80-400,400-2000
Tailstock sleeve dia.		mm	55
Tailstock		No	MT4
Tailstock sleeve travel		mm	150
Electric tools		pcs	4/6(option)
Tools Size		mm	25×25
Screw pitch		mm	X:4;Z:6
X, z rapid feeding		m/min	X:6; Z:8
X/z axis smallest unit set		mm	0.001
Main motor		KW	5.5KW
cool pump			AB-25
Cool pump motor		w	90
Power form	AC voltage	V	3 380±10%
	Frequency	HZ	50±10%
Total Power capacity		KVA	10
Net weight		Kg	1800	1900
Overall dimension		mm	2000×1100×1650	2320×1100×1650

3. Standard configuration:
1) Flat bed 750mm;
2) the surface contact with guideway of the longitudinal,cross slide carriage sticking PTFE.
3) Frequency conversion 2 shifts(manual change shift):80-400RPM,400-2000RPM;Triplex asynchronous motor: 5.5KW;
4) Spindle outer cycloid pump forced lubrication;;
5) Manual 3 jaw chuckφ200;φ200
6) 4 station electric tool post;
7) General tailstock;
8) lead screws/guideway auto oil lubrication;,
9) double door, half-full protection;
10) Stationary electronic handwheel;
11) Work light;
12) Ordinary cooling;
13) Manual iron plate;
14) GSK980TD CNC system.
4.Optional configuration:
1) FANUC,Siemens,Mitsubishi,HNC,GT66T,KND;
2) 1000mm Flat bed;
3) Manual 3 jaw chuckφ250;
4) hydraulic chuck / Rotary oil cylinder/ Hydraulic unit.
a) Entity φ200/φ250 hydraulic chuck from domestic or Taiwan.
b) through bar φ200/φ250 hydraulic chuck from domestic or Taiwan.
5) Entity φ200/φ250 pneumatic chuck and rotary pneumatic cylinder from domestic or Taiwan.
6) Hydraulic tailstock;
7) Pneumatic tailstock;
8) Cross slide with "T"-slot"T";
9) 6 station electric tool post;
10) Manul follow rest,steady rest;
11) manual lubrication.
12) full shield protection sheet
Contact ALLWAY MACHINERY , get more professional information!

---
