US$25,000.00-80,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
Cable-making machine
Product Type
Granulating Extruder
Assembly Structure
Separate Type Extruder
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Computerized
Computerized
Application
Wire Making Machine
Cable Diameter
According to Different Extruder Size
Machine Size
GF-40/50/60/70
Suitable Material
PVC/PE/LSZH
Automatic Grade
Automatic
Service
Technical Support, Training
Transport Package
Plastic Film+Wooden Package
Specification
Ingredients: Iron
Production Capacity
4set Per Month
Packaging & Delivery
Package Size
1680.00cm * 1310.00cm * 1350.00cm
Package Gross Weight
350.000kg
Product Description

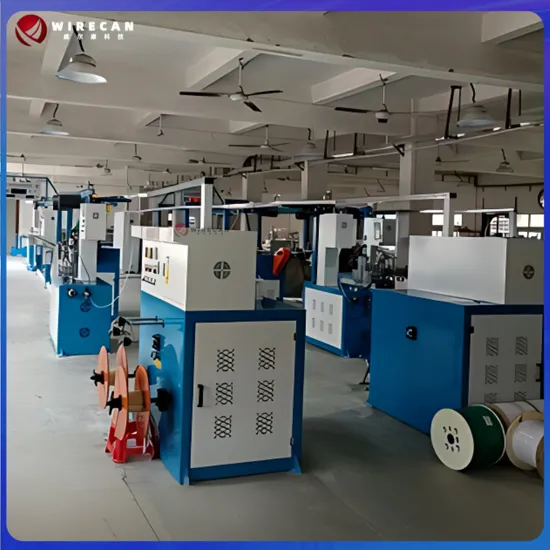

High-quality wire and cable-making machines, including cable extrusion machines, play a crucial role in the manufacturing of reliable and durable electrical wires and cables. These machines are used to produce a wide range of cables, including power cables, communication cables, data cables, and more.
1,High Quality Electric Wire Cable Making Machine application:
Suitable for the extrusion of PVC,PE,PU and other plastic material,mainly applied in the insulation or sheath extrusion of car cable,net wire,power cable,data wire,high frequency wire,building wire,electric wire.etc.The changed screw is suitable for extrusion of low smoke halogen free,nylon and other plastic material.
2,High Quality Electric Wire Cable Making Machine Technical parameters:
| Technical parameters |
| Machine type | GF-25 | GF-30 | GF-35 | GF-45 | GF-50 | GF-60 |
| Pay off type | motorized | motorized/double-shaft |
| Screw diameter | Φ25 | Φ30 | Φ35 | Φ45 | Φ50 | Φ60 |
| Screw L/D | 26:1 |
| Max.extrusion output | 20kg/h | 30kg/h | 40kg/h | 50kg/h | 70kg/h | 110kg/h |
| Motor power | 7.5HP | 10HP | 10HP | 15HP | 15HP | 20HP |
| Wire diameter | Φ0.2-1.0 | Φ0.2-2.0 | Φ0.4-2.5 | Φ0.6-3.0 | Φ0.6-4.0 | Φ0.8-8.0 |
| Cooling device | Folding type W/U type |
| Haul-off power | 2HP | 2HP | 2HP | 3HP | 3HP | 4HP |
| Wire-storage length | 250m |
| Max. Line speed | 500m/min |
| Take-up type | Double shaft bundle packaging/shaft packaging |
3. High Quality Electric Wire Cable Making Machine Equipment configuration
| No. | All parts' name | Qty |
| 1 | Pay off rack | 1set |
| 2 | Copper wire pre-heater | 1set |
| 3 | Straightener platform | 1set |
| 4 | Main motor(free-adjustable) | 1set |
| 5 | Automatic dryer and hopper | 1set |
| 6 | Electric apparatus main control cabinet | 1set |
| 7 | Movable water trough | 1set |
| 8 | Laser diameter gauge | 1set |
| 9 | High speed printing machine | 1set |
| 10 | Fixed water-trough | 1set |
| 11 | Double-wheel capstan | 1set |
| 12 | Horizontal wire-accumulator | 1set |
| 13 | High frequency sparker | 1set |
| 14 | Double-shaft take-up machine | 1set |
Can be optional for PLC control,infuse color machine
(for the production of double-color wire), etc. the concrete configuration can be adjustable according to client's require
ment.
>>
