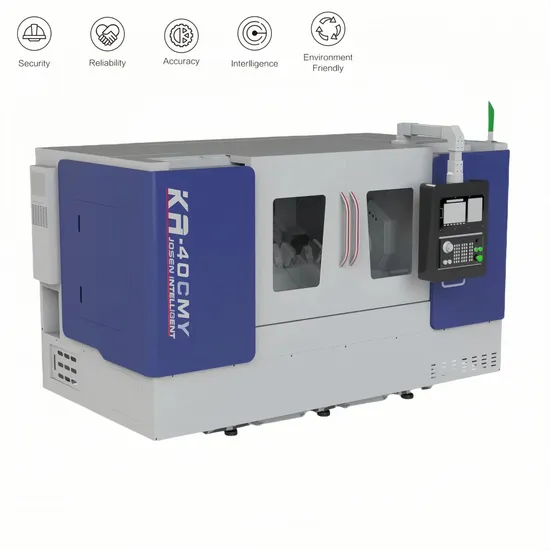

Synchronized Machining Saves 50% of The Time, 3c Precision Parts with 0 Missed Cutter Solution Double Spindle CNC Lathe Ka-40cmy

Product Description

Product Description
Machine features:
1. The main castings are all made of high-grade cast iron by resin sand casting process. Adopting advanced finite element analysis technology, the design structure is reasonable and the layout is optimized. And by aging treatment, it can ensure the long-term machining stability of the machine tool. Appearance design is beautiful and humanized. 2. The spindle adopts precision spindle with Japan/Germany high precision bearings, high speed, high precision, low noise and high rigidity.
3. X and Z axis servo motors are directly connected with precision ball screws through flexible couplings with high precision, and the screws are fixed at both ends, which improves the support stiffness of the support base and minimizes the distortion and deformation of the screws caused by frequent high-speed positioning and heavy cutting. 4. Adopting automatic centralized lubrication system to lubricate the screw, guideway and other moving parts through the set oiling interval and oiling duration to ensure the normal use of precision and service life of the machine tool.
5. The spindle adopts pulse-type speed control, which makes the positioning and C-axis indexing more accurate.
6. Double spindles and double rows of knives can be processed synchronously or sequentially to realize one-shot machining.
7. The feed system is driven by servo motor and roller screw drive with high precision and wear resistance.
8. The bed is supported by P-level large-size precision heavy-duty ball bearing line rail, with strong support rigidity and high guiding accuracy. The machine is fully protected by the outer cover to prevent the cutting fluid from splashing.
Product Parameters

SL NO.	Description	Unit	Details
1	Maximum swivel diameter of the bed	mm	500
2	Maximum machining diameter	mm	360
3	Maximum cutting length	mm	200 (one-way)
4	Standard Chuck Size	inch	6
CNC system
1	Syntec
			22TB
Spindle
1	Spindle type		Cartridge type (electric spindle)
2	Spindle specifications		A2-5
3	Spindle through-hole diameter	mm	56
4	Standard bar diameter	mm	43
5	Front bearing hole	mm	80
6	Standard spindle speed	rpm	50-5000
7	Spindle motor rated power (continuous operation rated)	Kw	7.5
8	Spindle motor rated power (15-minute run rating)	Kw	11
subspindle
1	Sub spindle Model		Cartridge type (electric spindle)
2	Sub-axle specifications		A2-5
3	Sub-spindle through-hole diameter	mm	56
4	Standard bar diameter	mm	43
5	Front bearing hole	mm	80
6	Standard spindle speed	rpm	50-5000
7	Sub-axis motor rated power (continuous operation rated)	Kw	7.5
8	Sub-axis motor rating (15-minute run rating)	Kw	11
X1, X2, Z1, Z2 axis accuracy
1	X1, X2, Z1, Z2 axis positioning accuracy	mm	± 0.005
2	X1, X2, Z1, Z2 axis Repeat Positioning Accuracy	mm	± 0.003
Y1, Y2 axis parameters (optional)
1	Y1, Y2 axis travel	mm	100
2	Y1, Y2 axis rapid traverse speed	m/min	20
3	Y1, Y2 Axis Ball Screw Diameter and Pitch	mm	25 x 10 (C lever)
4	Y1, Y2 axis guideway type and dimensions	mm	25 (Ballbar P class)
5	Y1, Y2 axis motor power	Kw	1.8
X1, X2 axis parameters
1	X1, X2 axis travel	mm	530
2	X1, X2 axis rapid traverse speed	m/min	30
3	X1, X2 Axis Ball Screw Diameter and Pitch	mm	32 x 10 (C3 lever)
4	X1, X2 axis guideway type and dimensions	mm	30 (P4 class for ball bearing rails)
5	X1, X2 axis motor power	Kw	1.8
Z1, Z2 axis parameters
1	Z1, Z2 axis travel	mm	400
2	Z1, Z2 axis rapid traverse speed	m/min	30
3	Z1, Z2 Axis Ball Screw Diameter and Pitch	mm	32 x 10 (C3lever)
4	Z1, Z2 axis guideway type and dimensions	mm	35 (P4 class for ball bearing rails)
5	Z1, Z2 axis motor power	Kw	1.8
Other
1	Cooling box capacity		100
2	Power Chassis Capacity		35
3	Machine size		3000 X 2000
		mm
4	Machine weight	kg	4500

Detailed Photos
Company Profile
Our Advantages
Certifications
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
