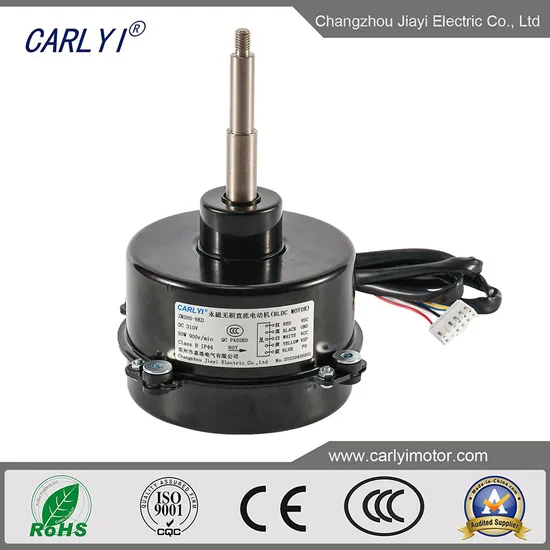

1/12HP Brushless DC/Ec Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit

Product Description

Product Description
Brushless DC/EC Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit
The above mentioned specification is representative specification,can also be designed and manufactured according to customer requirements.
Main Technical Data of Brushless DC/EC Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit:

Model	Vol (V)	AMPS (A)	RPM (r/min)	Output (W)	Vsp(V)
ZWD006510SDD	Vdc 310	0.27	300-900	65W	0-6.5
ZWD008010SDD	Vdc 310	0.32	300-900	80W	0-6.5
ZWD012010SDD	Vdc 310	0.49	300-900	120W	0-6.5
ZWD015010SDD	Vdc 310	0.61	300-900	150W	0-6.5
ZWD020010SDD	Vdc 310	0.81	300-900	200W	0-6.5
ZWD025010SDD	Vdc 310	1.1	300-900	250W	0-6.5

low noise, quiet operation	IP 44 protection level , Locked rotor protection, open phase protection, over-voltage protection, over-current overheating protection	High efficiency, wide speed adjustment range, VSP mode	programmable

Materials
Silent bearing,driving board,copper wire

Application
Application
Air purifier, chiller, split air conditioning outdoor unitProduct Parameters
Performance of Brushless DC Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit:
DC 310V
Power output up to:250W
Variable operation speedDrawing of Brushless DC Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit:
Recommendation
Main Products of Brushless DC/EC Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit:
Terms
Terms:
1. Trade Terms: FOB, CIF, CNF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union.
3. Payment Condition: 50% deposit in advance, 50% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery
Company Profile

Changzhou Jiayi Electric Co., Ltd was established in 2013. Is a manufacturer focused on innovative motor solutions for the residential and commercial HVAC and refrigeration industries. The company has a skilled R & D team, and has more than 10 years of motor research and development, design, production and sales experience.With an annual output of 1 million motor production capacity. The new generation of BLDC motors and EC motors developed by CARLYI use a unique high flux and shock absorption design, coupled with high-quality bearings, so that the motor has more torque in the same. CARLYI branded motors have been approved by CCC, ISO9001, CE, RoHS certification.

Packaging & Shipping
Packing and Shiping:
FAQ
FAQ of Brushless DC Fan Motor for Air Purifier/Chiller/Split Air Conditioning Outdoor Unit:
Q1: Are you factory?
A: Yes, we have been in designing and providing excellent motors for customers. Our factory production is all under ISO9001 quality management system.
Q2: How long you could prepare samples?
A: Normally 3 days if we have the sample in hand. If customized one, about a week around
Q3: How about batch order production?
A: Normally 15-30 days, the customized or newly developed products may take more half month.
Q4: Do you inspect the finished products?
A: Yes, we do inspection according to ISO9001 standard and ruled by our experienced QC staff.
Q5: What advantage do you have?
A: For the motors, we have long enough of 18months guarantee, and for the service, we offer 24 hours technical support and barrier-free communication.

---
