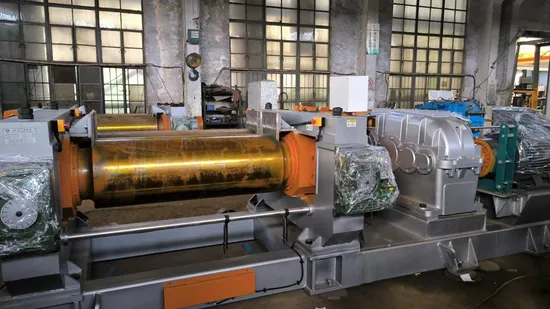

Xk-610 Open Rubber Mixing Machine Double Roll Rubber Mixing Machine (24 inches)

Product Description

Basic Info.

mode	xk-610
ltem
working diameter of rollers(mm)	610
working length of rollers(mm)	2000
linear speed of front rollers(m/min)	30
speed ratio of front and rear roller	1:1.29
capacity per.batch (kg)	90-120
motor power (kw)	160
overall size l*w*h(mm)	7500x2500x2640
weight(kg)	28000
notes	nylon bush use grease for lubricating,copper bush and bearing use grease or oil

Open mixing mill
The mill is mainly for rubber warming,plasticating,mixing and sheeting.
Specification:160-810
Product Description
Rubber Open Type Mill
Product Description:
junlin Rubber Mill Machine is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A. with chemicals into even materials. The even materials can be fed to calender, hot presses or other processingmachiner3t for making rubber or plastic products. It adopts dual output reducer, the front and behind roller can be driven separately with rolling bearing structure, the roller can adopts hollow center groove roller or drilling hole smooth roller against difference using scope as mixing, refining or press pieces etc.
This machine can be installed stock blender according to customer s request to decrease the labor strength, also equipped with safe device.

mode	xk-160	xk-230	xk-250	xk-360	xk-400	xk-450	xk-560	xk-610	xk-660	xk-710	xk-810
ltem
working diameter of rollers(mm)working diameter of rollers(mm)	160	230	250	360	400	450	560/510	610	660	710	810
working length of rollers(mm)	320	600	620	900	1000	1200	1530/1830	2000	2130	2200	2540
linear speed of front rollers(m/min)	8.03	10.94	14.1	16.25	18.65	24.5	27.87	30	28.6	31.9	32
speed ratio of front and rear roller	1:1.35	1:1.19	1:1.17	1:1.25	1:1.27	1:1.27	1:1.2	1:1.29	1:1.24	1:1.15	1:1.27
capacity per.batch (kg)	1-2	6-10	10-15	20-25	18-35	25-30	50-100	90-120	130-165	150-200	180-250
motor power (kw)	7.5	15	18.5	30	37	55	90/110	160	185/250	285	2*250
overall size l*w*h(mm)	1380*860*1320	2800*1200*1120	3800*1500*1500	3850*1650*1750	4250*1850*1870	5200*1800*2000	6500*2300*2000	7500*2500*2640	7600*3400*2500	8246*3556*2270	9736*5160*2070
weight(kg)	1000	2300	3000	6500	7000	10000	20000	28000	47000	51000	74500
notes	nylon bush use grease for lubricating,copper bush and bearing use grease or oil

Configuration of Hardened Teeth Gearbox Bearing Bush Auto Lubrication Motorized Gap Adjustment Electric Hydraulic Brake Device stock blender Rubber compoud mixing mill
1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.
3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.
5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.
6. Stand Frame & Apron: Heavy Duty Steel Casting.
7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.
8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.
9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
4.Manufacturing Technique of Hydraulic Stock Blender Two Roll Rubber Mixing Mill Machine ,
Rubber Mixing Mill Machine
Problems of customer concern:
About machine performance quality
1.Q:How old is Junlin factory?
A:The company has a history of 15 years since its inception in 2009
2.Q:What is the delivery time?
A:The delivery time of the machine is 15-60 days
3.Q:Which countries can I send to?
A:It can be delivered anywhere in the world
4.Q:How about the quality of the product?
A:The machine is guaranteed for up to one year. During the problem company to send accessories
