2m Paving Width Crawler /Wheel Cold Milling Machinery Concrete Milling Machine (HD2000M) with Good Price

Product Description

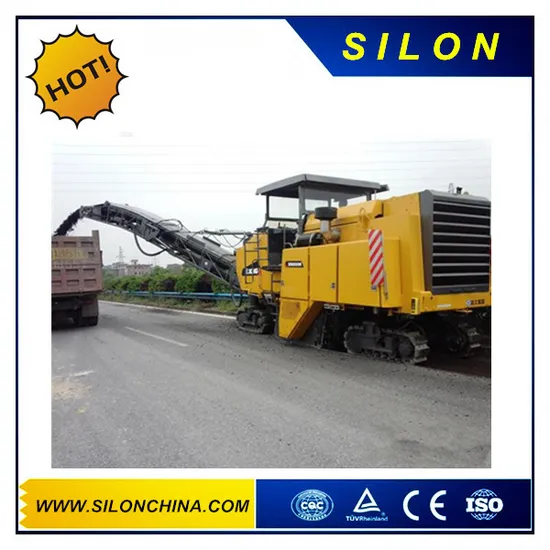

2000m Paving Width milling machine Cold Milling Machine HD2000M
HDSeries milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for largescale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, reticulations and vehicle tracks as well as road trench, tunnel excavation. Cement road surface roughening and dislocation smoothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.
Performance and characteristic
Mechanical driving milling drum has the obvious characteristics of stable milling and high efficiency.
The mechanical hydraulic mixing driving moving system has two-gear speed which can be suitable for the requirement of different working conditions and improve the working efficiency. The highstrength and high wear resistance imported cutter and cutter rest have long service life and low construction cost.
The imported hydraulic elements have high working reliability.
Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.
PRODUCT DETAILS
TECHNICAL PARAMETERS

Model			HD2000M
Max. milling with		mm	2000
Max. milling depth		mm	0-320
Milling wheel	Number of tools		162
	Drum diameter with tools	mm	980/1060
Engine	Model		CUMMINS QSZ13-C525
	Rated power	kW	386/525(HP)
	Rated speed	rpm	2100
Specifications	Operating speed	m/min	0~30
	Travel speed	kmh	0~5.6
	Ground clearance	%	480
	Ground clearance	mm	≤300
	Operating weight	kg	32000
Volume	Fuel tank	L	1300
	Hydraulic oil tank	L	400
	Water tank	L	3400
Conveyor	Width	mm	800
Measurement	Overall machinery LxWxH	mm	13920×2565×3500
	Conveyor LxWxH	mm	1670×300×640
Travel mode			Track
