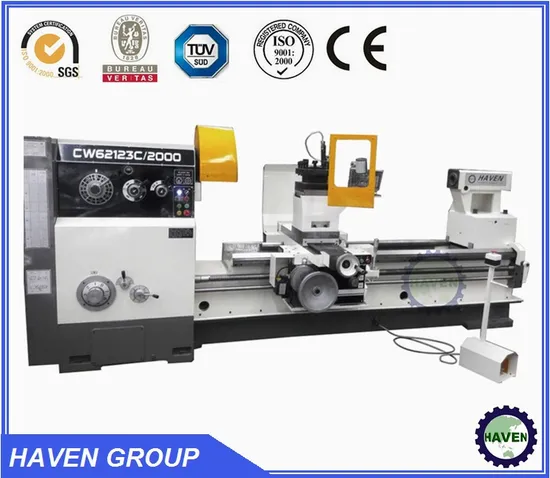

CW-C Series Horizontal Lathe Machine

US$5,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CW62123C/2000
Processing Accessory
pipe and flange type metal workpiece
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing Over Bed
1230mm
Distance Between Centerm
2000mm
Spindle Bore
105 or 130mm
Main Motor
11kw
guideway width
610mm
max. loading weight
2000kgs
Transport Package
Wooden Pallet
Specification
CW62123C/2000
Trademark
HAVEN
Origin
China
HS Code
8458190000
Production Capacity
30units/Month

Product Description

CW-C Series Horizontal Lathe Machine
Main specification:
Model Unit CW61103C
CW62103C		 CW61123C
CW62123C		 CW61143C
CW62143C		 CW61163C
CW62163C		 CW61183C
CW62183C
Swing over bed mm 1030 1230 1430 1630 1830
Swing in gap mm 1290 1490 1690 1890 2090
Swing over cross slide mm 700 900 1100 1240 1440
Distance between centers mm 1500,2000,3000,4500,6000
Length in gap from face plate mm 380
Spindle nose C11or D11
Spindle bore mm 105,130 (optional)
Spindle speeds/steps rpm/steps 10-800/18 7-531/18 6-480/18
Cross slide travel mm 615 715 815 815
Top rest travel mm 300
Rapid traverse mm/min Z:3240; X:1870
Quill diameter mm 120
Quill travel mm 270
Quill taper MT6
Bed width mm 610
Metric threads mm/kinds 1-240/53
Inch threads tpi/kinds 30-2/31
Module threads mm/kinds 0.25-60/42
Diametral pitch threads Lpi/kinds 60-0.5/47
Main motor power kw 11

Model Unit CW6163C
CW6263C		 CW6183C
CW6283C		 CW6193C
CW6293C
Swing over bed mm 630 830 930
Swing in gap mm 890 1090 1190
Swing over cross slide mm 350 550 650
Distance between centers mm 1000,1500,2000,3000,4500,6000
Length in gap from face plate mm 300
Spindle nose C11or D11
Spindle bore mm 105,130 (optional)
Spindle speeds/steps rpm/steps 10-800/18
Cross slide travel mm 480
Top rest travel mm 225
Rapid traverse mm/min Z:3200, X:1870
Quill diameter mm 100
Quill travel mm 260
Quill taper MT6
Bed width mm 550
Metric threads mm/kinds 1-240/53
Inch threads tpi/kinds 30-2/31
Module threads mm/kinds 0.25-60/42
Diametral pitch threads Lpi/kinds 60-0.5/47
Main motor power kw 11

Lathe photos:
Ready for shipment:
Standard accessory (for CW62123C/2000):
4 jaw chuck diameter 500mm;3 jaw chuck diameter 380mm; steady rest diameter 500mm;follow rest diameter is 20-140mm;dead center; center sleeve; working lamp; coolant system;tools; foundation bolt; level adjusting wedge; english manual;
Optional accessories (for all model):
CE standard including chuck guard, turret guard, big electric box
SINO DRO for 2 axis or 3 axis
Lead screw cover
Chasing dial
Live center
Face plate
Foot brake
