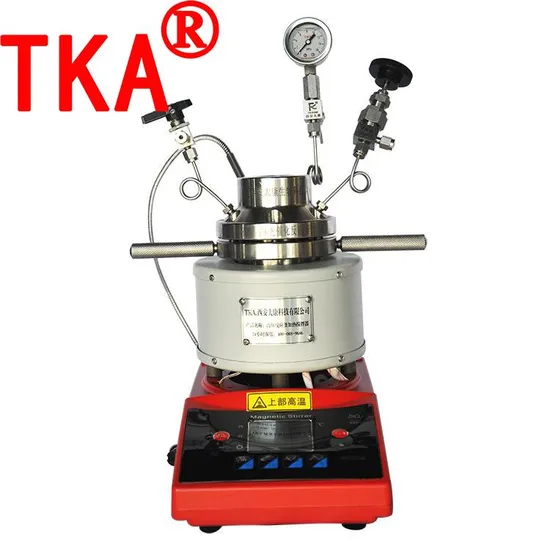

200ml Laboratory Photochemical Reactor Liquid Reactor Price

Product Description

Product Introduction Laboratory Photochemical Reactor Liquid Reactor Price
When this product is used for chemical and chemical high-pressure synthesis or catalytic reaction, it is necessary to measure the temperature, measure the rotational speed, add inert gas, stabilize the pressure and realize the required experimental environment such as online sampling at the same time.
Feature
1. The entire reaction process can be observed during the reaction.
2. The observation window adopts JGS2 high transmittance quartz glass to realize online photochemical reaction under high pressure.
Application examples: It is suitable for photochemical high pressure reaction, carbon dioxide CO2 reduction, carbon dioxide CO2 reduction to methanol, carbon dioxide CO2 reduction to methane CH4, reduction and degradation of nitrogen oxides NOx, high pressure photocatalytic degradation of formaldehyde and other fields. Photocatalytic reaction, Fischer-Tropsch reaction, hydrogenation reaction, polymerization reaction, homogeneous reaction and carbon dioxide supercritical reaction, etc.
The product has obtained the national patent, patent number: 201003127547.0
Product Parameters

Mode	Size	Volume	Connection Type
WCGF-25ML	Φ40*60	25ml	Screw thread
WCGF-50ML	Φ60*80	50ml	Flange
WCGF-100ML	Φ80*120	100m	Flange
WCGF-200ML	Φ80*140	200ml	Flange
WCGF-500ML	Φ100*240	500ml	Flange
Volume			25ml,50ml,100ml,200ml,500ml
Operating Temperature			250ºC/350ºC
Operating Pressure			10MPa/20MPA
Valve and Connection Material			SUL 316L
Optical window diameter			30mm-60mm
Revolving speed accuracy			±5RPM
Power supply			220V,50HZ
Stirring power			25W-100W
Heating power			300W-1000W
Insulating layer material			Alkali - free glass fiber, insulation coefficient
Relative humidity			≤35%≥500Ghz
Working time			Continuous work for 96 hours in a time.
Material			Stainless steel 316L/ Pure titanium/Hastelloy material .can be customized
Reactor Liner			Te flon flexible inner sleeve is easy to clean
Optical window material			Adopt polished JGS2 quartz glass (pressure window) or sapphire mirror

Packaging & Shipping Package Detail
1) Wooden packing
2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
3) You can choose your own freight forwardwe as well.
4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details1) AMERICA:3-8 working days.2) ASIAN:3-8 working days.3) EUROPE:5-10 working days.4) OCEANIA:4-9 working days.5) AFRICA:7-13woring day.
Company Profile Xi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on. Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission. Exhibition Show Certifications
FAQ Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.Q6:What is your terms of payment?A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)Q7:Can we visit your factory?
A7: Welcome visit our factory.

---
