Especially PE and PU Cell Foams Special Solvent-Based Polymer Adhesivedouble Sided Tape

Product Description

Production Description

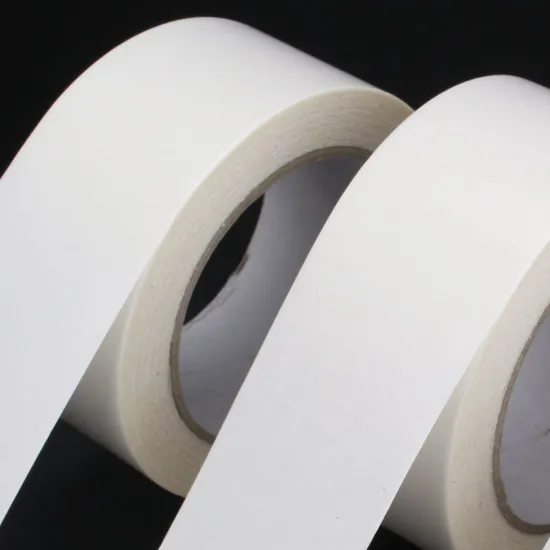

VH-110 Tape is a 100μm nominal total thickness tissue based tape with double sided special solvent-based polymer adhesive and protected by double sided PE coated silicone release liner.
Features
¨ Good initial tack and easy for quick bonding ¨ Good rebound and warp proof property
¨ Nice temperature resistance and a dedicated tape for foam bonding
Applications
Suitable for bonding all kinds of foams and sponges, especially PE and PU cell foams used in household appliance industry.
Technical Data Sheet

Property	Unit	Value	Test Method
Total Thickness (without liner)	μm	110±10%	PSTC-33 / ASTM D3652
Peel Adhesion (180°)	N/25mm	≥20	PSTC-1 / ASTM D3330
Tack Rolling Ball	cm	≤10	PSTC-6 / ASTM D3121
Tensile Strength	N/25mm	N/A	PSTC-31 / ASTM D3759
Elongation	%	N/A	PSTC-31 / ASTM D3759
Application Temperature	°C	8~ 38	----------
Heat Resistance	°C	-10~ 60	----------

Cut Roll: to be confirmed.
Jumbo Roll: to be confirmed.
Remarks: The data above are typical results and subject to change without notice. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%. The product should be stored at room temperature and kept from wet and heat source. Shelf life: One year from shipment date when stored at 21°C (70°F) / 50% RH out of direct sunlight. It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, and free of grease and oil. The user should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for user's special purpose and technique. JIANGYIN MEIYUAN INDUSTRIES CORPORATION
Address: No.11 Songwentou Road, Yunting Industry Zone, Jiangyin City, Jiangsu Province, China Postcode: 214400
Website: meiyuan1988.en.made-in-china.com

---
