5 Axis CNC Turning Milling Lathe Machine with Drive Tools and Y Axis Cx-540/Tck550/Tck600/Tck700

Product Description

Product Description

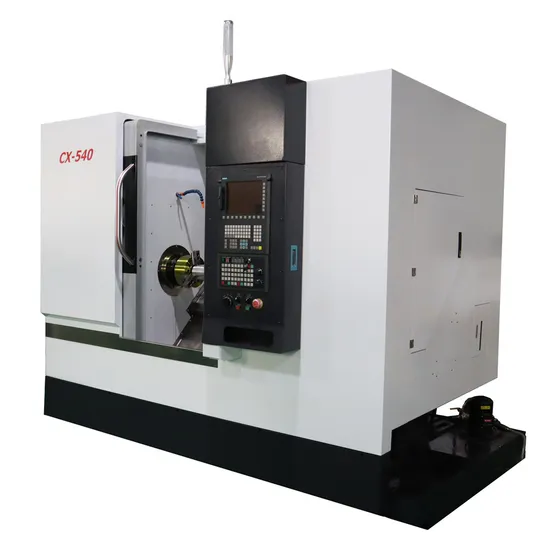

CNC Lathe Turning Milling Machine with Siemens 828D control
Model Number : CX-540
* Stable performance and excellent structure
* High precision
* Automatic feeding
* Easy to operate
* Customized service provided
Detailed Photos
Quality CNC system Siemens 828D
Comply with the ergonomic interactive interface to complete the precision machining requirements . (Fanuc/Mitusubishi/Siemens/Syntec)
Choose Materials Carefully
Keep improving and use high-quality materials to make the machine last longer.
Quality castings
The base is cast as a whole, with a 45-degree inclined bed, high strength and good shock absorption .
8 Inch 3-jaw chuck
The chuck of this machine tool is a standard configuration, which can meet the processing needs of most users. Products from other manufacturers can also be configured according to user needs.
Tailstock

Thickened viewing shield
The observation shield is made of thickened material, which is more convenient for observation work.
12-Station Power Turret with live tools
Y-axis optional
Specifications :

Items	Details			Unit	Specifications
Capacity	Maximum swing diameter over bed			mm	Φ500
	Maximum swing diameter over saddle			mm	Φ220
	Maximum turning length			mm	550
	Maximum turning diameter			mm	Φ480
	Maximum bar through diameter			mm	Φ52
Stroke and fastest feed	X-axis effective travel (radius)			mm	260
	Z-axis effective travel			mm	550
	X, Z axis rapid traverse rate			m/min	24
	X, Z axis servo motors are recommended			kw	2.2
Spindle	Spindle nose type			/	A2-6
	Spindle through hole diameter			mm	Φ66
	Spindle maximum speed			rpm	4000
	Servo motor is recommended			kw	11
	Chuck and Rotary Cylinder Specifications			inch	8
	Distance from spindle center to ground			mm	1060
	Distance from spindle center to front door			mm	440
Precision	X, Z axis repeatability			mm	±0.003
	X, Z axis positioning accuracy			mm	±0.005
Hydraulic tailstock	Tailstock Sleeve Specifications			/	MT-5
	Tailstock travel			mm	450
	Tailstock pressure range			Pa	4~25
	Tailstock movement			/	Programmable hydraulic cylinder control
	Tailstock structure			/	35mm Ball Linear Rail
	Optional hard rail tailstock			/	Barrel mandrel type
Machine structure and accessories specifications	Bed structure			/	45 degree integral inclined bed
	X-axis rail specification			/	35mm roller
	Z-axis rail specifications			/	35mm roller
	X-axis screw diameter/pitch			/	Φ32mm/10mm (double nut)
	Z-axis screw diameter/pitch			/	Φ40mm/10mm (double nut)
	Turret Specifications (Recommended)			/	80 Center High
Dimensions	Length × Width × Height (including sheet metal)			mm	2850*1865*1920
	Net Weight			kg	3000
Control system: SIEMENS 828D Spindle : Taiwan Kinsun Linear guide rails: Taiwan Hiwin Ball screw: Taiwan Hiwin Ball screw bearing: NSK 12-station servo power turret: Taiwan SWIFT

FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.

---
