Universal Swivel Head Milling Machine (XL6436)

Product Description

Product Description

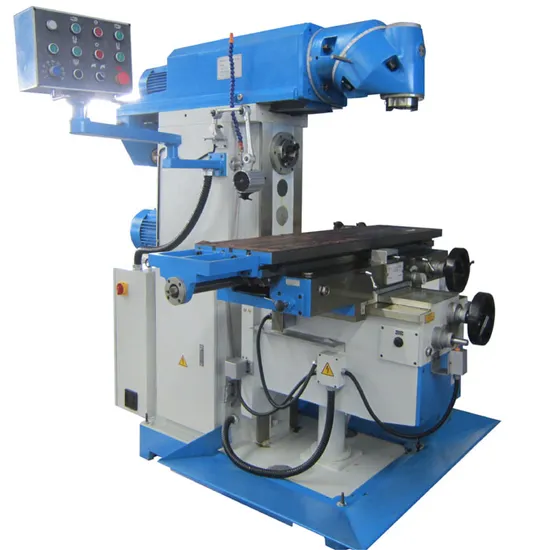

Universal swivel head milling machine(XL6436)
Machine advantages:
1.Driven by servo motor;
2.Table automatic feed on X,Y,Z;
3.Automatic rapid feed X,Y,Z.
4.Rotary table can be ordered at special request;
5.ISO 50 spindle taper;
6.Milling head can swivel 360 degree;
7.The work table can swivel ±45 degree;
8.High spindle speed;
9.Powerful main motor.

Main features:
1.Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
2.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
3.Large work area of 1600 x 360 mm and up to 500 kg table load capacity
4.Quiet, precision-made headstock gears with hardened and ground gears
5.Universal cutter head swivels on 2 levels - quick change-over from horizontal to vertical machining
6.By combining both swivel levels, almost any spatial angle can be set
7.Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
8.Telescoping covers on the Y axis protect the feed spindle
9.Control panel swings out to either side and features an integrated position indicator
10.5.5 kW main drive guarantees high torque
11.Coolant system and chip tray are Included
Product Parameters
Specifications:

Specifications	Unit	XL6436	XL6436C	XL6436CL
Table size	mm	1325×360		1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	30~750/20~500/15~375
Spindle taper		7:24 IS050 (H) 7:24 IS040 (V)
Arm travel	mm	550
Distance between spindle nose and table surface	mm	196-656
Distance between horizontal nose and table surface	mm	20-480	20-470
Distance between spindle axis and arm surface	mm	245
Spindle speed range	r.p.m	12steps 60-1750 (V) 12steps 60-1800 (H)
T-slots(NO./width/pitch)	mm	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)
3 to feed Ac servo motor torque	N.m	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2520×2100×2000
Net weight	kg	2685	2750	2800

Standard accessories list:

Allen wrench	5	1set
intermediate bushing	7:24 ISO50/MS4	1 piece
Allen wrench	10,14	1 piece/per
fixed wrench	13 × 17	1 piece
fixed wrench	22× 24	1 piece
fixed wrench	36 × 41	1 piece
7:24 ISO50 milling chuck	4\5\6\8\10\12\14\16	1 set
machine vise	QB160	1 piece
Taper shank type milling arbor	7:24 ISO50 Φ32	1 set
Milling arbor	Φ27	1 set
Milling arbor	Φ32	1 set
draw bar	M24(,)	1 piece/per
nut	M24	1 piece
carrier ring	24	1 piece

Optional accessories list:

XC Series Vertical milling head	XC622B	7:24 ISO
XC Series Universal milling head	XC624A	MT4
Universal dividing head	125A	Include three-jaw chuck
Universal dividing head	160	Include three-jaw chuck
Swivel table	φ320	Manual
Indexable carbide mill tool	φ63	With shank
Indexable carbide mill tool	φ100	No shank
Indexable carbide mill tool	φ160	No shank
Sizing block	240x120	6 pieces/set
Clamping kit
Milling chucks	15/
Q13 Series Machine vice	200
Q13 Series Machine vice	250
Q13 Series Machine vice	320
Q41 Series Machine Vice	160
Oil gun		1 piece

Detailed Photos

---
