| US$400.00-500.00 | 5 Pieces (MOQ) |

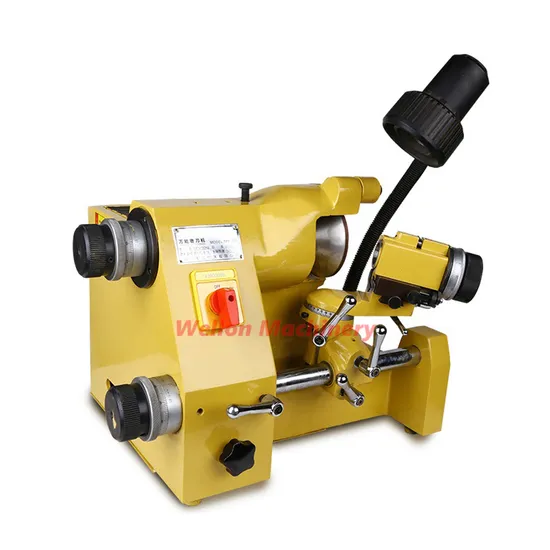

| Model | MR-20 |
| Collet capacity | Φ1/8-Φ16 mm |
| Motor | 22oV/380V 1/3HP 50HZ |
| Spindle speed | 5200rpm |
| Grinding wheel | Φ100×50×Φ20 |
| Longitudinal traverse of index head carrier | 140mm |
| Fine longitudinal adjustment travel of index head carrier | 18mm |
| Negative taper angle | 0 to 52 degree |
| Relief angle | 0 to 44 degree |
| Motor | 250w, 2800 rpm |
| Power | 220V, 50HZ, single phase |
| Standard collet | 1/8'', 4, 6 |
| Dimension | 51×41×46cm |
| Weight | 60 kg |
