Basic Info.
Processing Object
Crank Shaft
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
GS, CE, RoHS, ISO 9001
Name
High Quality Metal M7160X1250 Hydraulic Surface Gr
Size of work table
1250*600m
Max. Longitudinal movement of worktable
1350mm
Max. Cross movement of grinding herd
650mm
Max. Vertical movement of grinding head
600mm
Abrasive wheel dim
400*127*40mm
Speed of grinding wheel
1440r/min
Total power of motor
14kw
Power of spindle motor
7.5kw
Power of oil pump motor
5.5kw
Processing accuracy
0.015/1000mm
Transport Package
Plywood Case
Specification
3800*2700*2800mm
Product Description

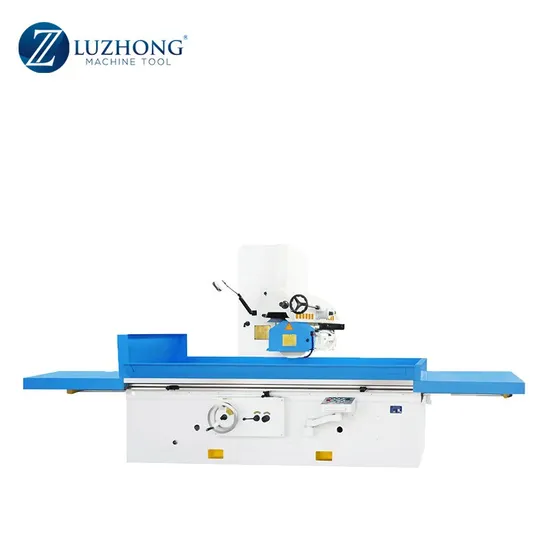

High Quality Metal M7163X1250 Hydraulic Surface Grinder Machine for sale
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:
Technical specifications | Units | M7163x1250 |
Size of work table(L x W ) | mm | 1250x630 |
Max. Longitudinal movement of worktable | mm | 1350 |
Max. Distance from the spindle centerline to the worktable surface | mm | 845 |
Max. Cross movement of grinding herd | mm | 700 |
Max. Vertical movement of grinding head | mm | 600 |
Vertical movement of the grinding head by hand wheel | per graduation | mm | 0.01 |
per graduation | mm | 1.00 |
Rapid lifting motor | Power | KW | 0.37 |
Speed | R/min | 1450 |
Abrasive wheel dim (L x D x W) | mm | 400x127x40 |
Speed of grinding wheel | r/min | 1440 |
Total power of motor | KW | 14 |
Power of spindle motor | KW | 7.5 |
Power of oil pump motor | KW | 5.5 |
Processing accuracy | mm | 0.015/1000 |
Surface roughness | um | Ra:0.63 |
Package(L x W x H) | mm | 3800x2700x2800 |
Net weight | Kg | 5100 |
Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
