US$27,000.00-32,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Free Maintenance Battery
Yes
Weight(Full Load)
17000 Kg
Dimension
8350mm*2490mm*3300mm
Transport Package
Nude Packing
Specification
ISO, TS16949, CCC
Production Capacity
1000PCS/Month
Product Description

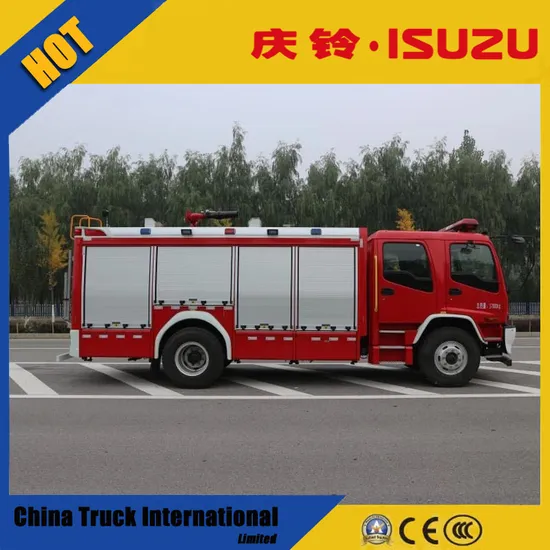

FVR 4X2 Fire Engine Fire Fighting Rescue Truck
1.Product Description:
Dimension(L×W×H) | 8350mm×2490mm×3300mm |
Weight(Full Load) | 17000kg |
Engine Power | 241hp |
Power Density | 10kW/t |
Crew | 1+1+4 person |
Max Speed | 100km/h |
Pump Flow | 60L/s(1.0MPa) |
Tank Capacity | 4000kg |
Roof Turret Range | ≥65m |
Chassis
Model | FVR,QL1180XMFRY |
Drive Type | 4×2 |
Wheelbase | 4500mm |
Permissible Total Weight | 18000kg |
Engine | Engine model:6HK1-TCL |
Power:241HP( 177kw) |
Max Torque:981N.m/1450rpm |
Displacement:7.79L |
Emission:Euro5 |
Fuel Type:Diesel |
Transmission | MLD-6Q, 6 forward & 1 reverse |
PTO | Full Power PTO |
Tyre | 11R20-16PR, 7PCS |
Cab Structure | 4 doors 2 row |
Standard configuration | Power Steering, AC, Retro-reflective Marking, ABS, Free Maintenance Battery, Data Recorder |
Pump
Model | Shanghai Xiongzhen CB10/60-XZ |
Flow Rate | 60L/s(1.0MPa) |
Material | Cast aluminum alloy pump body, aluminum alloy impeller, stainless steel pump shaft |
Primer Pump | Piston type |
Max Vacuum | ≥85kPa |
Loading Time | ≤60s |
Loading Height | 7m |
Location | Real installed |
Roof Turret
Model | Chengdu Weisite PSKD50W |
Operation | Electric |
Flow Rate | 50L/s |
Range | ≥65m |
Injection Mode | Direct current |
Rotation | 340° |
Elevation | -10°~70° |
Tank
Capacity | Water 4000kg |
Material | Stainless steel 304 |
Sheet thickness | Base plate and front and rear sealing plates 4mm, side plate, top plate and diaphragm 3mm |
Position | Between equipment box and pump room |
Type | The water tank is designed whole exposed type |
Structure | Vertical and horizontal partitions are set inside, and longitudinal joists are set at the bottom |
Fix | Elastic support on both sides, installed on the subframe |
Tank Accessories | 500mm Water tank inlet hole with green tank cover |
1 DN125 overflow port of water tank |
1 Liquid level indicating sensor |
1 Drain outlet of water tank,DN50 Manual ball valve control |
1 DN150 Water tank outlet |
1 DN65 Water injection from pump to tank |
Equipment box Pump Chamber
Position | Between cab and tank |
Structure | Steel frame, aluminum alloy mask |
Internal equipment rack | Aluminum alloy profile, aluminum alloy partition |
Rolling shutter door | One left and one right, pull rod type, with lock |
Interior lighting | LED white light band, open and close with rolling shutter door |
Flip pedal | Under the roller shutter door, bearing 150kg, yellow flashing warning light |
Position | Rear vehicle |
Structure | Steel frame, aluminum alloy mask |
Internal equipment rack | Aluminum alloy profile, aluminum alloy partition |
Rolling shutter door | One left and one right, pull rod type, with lock |
Interior lighting | LED white light band, open and close with rolling shutter door |
Flip pedal | Under the roller shutter door, bearing 150kg, yellow flashing warning light |
Back stairs | Foldable, aluminum alloy, on the right side of the rear of the vehicle |
Pipeline System
Suction pipeline | One DN150 internal buckle type interface, equipped with filter screen and blind cover |
Outlet pipeline | Low pressure pipeline: 4 DN80 manual ball valves, with interface and blind cover Medium pressure pipeline: 2 DN65 manual ball valves, with interface and blind cover |
External water injection pipeline | Up turn type, 2 DN80 manual ball valves, with interface and blind cover |
Turret outlet pipeline | One DN100 electric pneumatic butterfly valve |
Tank filling line | One DN65 electric pneumatic butterfly valve |
Other function settings | Automatic water reception |
Control cabinet and instrument panel
Position | Pump room rear outside |
Material | Cast aluminum alloy |
Technology | The surface of control cabinet is treated by sandblasting and anodizing |
Control cabinet accessories | lock up flap, instrument panel light, buzzer alarm |
Control switch and key | Instrument lighting, water diversion, tank injection, tank outlet, turret outlet, automatic water receiving, hand throttle, emergency stop, etc. |
Instrument display | Speed value, vacuum value, pressure value, water level value and liquid level value |
Electrical system
Main power switch | installed |
Alarm lamp | one LED red long row alarm light on the top of the cab; three red and blue LED strobe lights on the upper part of both sides of the vehicle |
Alarm light alarm controller | Power 100W, with handheld loudspeaker in the cab |
Electronic search lamp | 70W, at the rear of the roof |
Working light | Two upper parts on both sides of vehicle , LED lighting |
Back Guide Monitor | 7-inch color LCD in the cab |
Other electrical accessories | Fast dispatch support system (for charging chassis battery) |
Vehicle data
Data name | Amount |
Chassis frame number rubbings | 1 |
Engine number rubbings | 1 |
Driver's Manual | 1 |
Product warranty manual, warranty card | 1 |
Vehicle conformity certificate | 1 |
Chassis 3C certification mark | 1 |
Vehicle operation and maintenance instructions | 1 |
Vehicle certificate | 1 |
Vehicle 3C certification mark | 1 |
Electrical schematic diagram of upper garment | 1 |
Operating instruction of fire pump | 1 |
Operating instruction of roof Turret | 1 |
Vehicle conformity certificate | 1 |
2.More Photos of Fire Truck:
3.Company information:
China Truck International Limited specialized in all kinds of modified vehicles of truck chassis.With a professional service. We are committed to providing not only high quality special trucks but also spare parts and technical support to customers.
4.FAQ
Q. What is your terms of shipment?
A: Generally, trucks are always by container, bulk cargo vessel, ro-ro etc. spare parts are packed in wooden cases, shipped by
containers.
Q: Do you provide customized service?
A: Yes, we offer customized service as you needs for the performance , included special requirements .
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
>>
