3D Stone Sculpture CNC Router for Stone Carving

Product Description

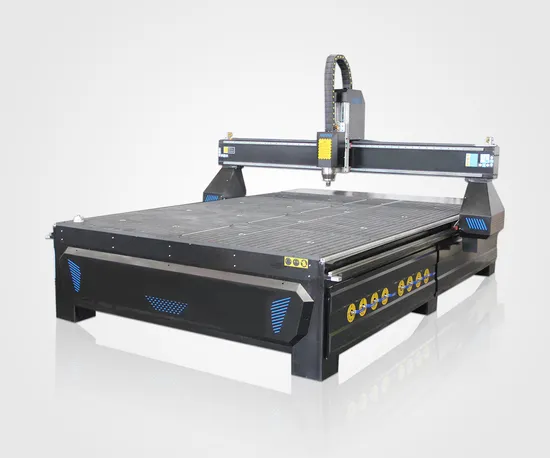

3d Stone Sculpture CNC Router for Stone Carving
This is one heavy duty cnc router machine in jinan dwin company, this machine with high power water cooling cnc spindle 5.5kw, can be used for all kinds of materials including wood, stone metal engraving or cutting, it is really powerful in function. This one machine also can attach rotary to help engraving cylinder materials.
Because this machine is of very high standard parts including the strong struture, so it is really stable during work, and this machine is also with water tank in it, so you can also use it to engrave or cut metal materials like aluminum, stainless steel, etc.
Main Features of Stone CNC Router:
1. The overall steel structure, working area 1300 mm × 2500mmx300mm.
2. With 20 side rails to provide maximum rigidity, imported screws and racks, providing fast and smooth operation speed
3. Maximum moving speed is 20 m / min and Max operation speed is 15 m / min.
4. In according with industry standards, adopt X, Y, Z axis synchronous motor, to ensure high accuracy and high transmission ratio.
5. Intelligent 3D computer numerical control system, three-axis linear, fast, smooth three-dimensional carving, cutting and processing.
6. Replace table quality aluminum T-slot.
7. The system is compatible with CAD / CAM software (such as TYPE3) / ARTCAM / castmate / PROE / UG / Wentai, jdpaint like.
8.5500W DC brushless spindle drive provides a powerful driving force, cutting and carving.
9. Built-in high-capacity storage, and support off the power and restart.

Technical Parameters:

Model		DW2130
Working Area	XYZ axis	2100*3000*300mm
Height	Z axis	300mm
Working Table		Vacuum (6 section) with T slot aluminum alloy platform
Move System	XYZ axis	XY:rack Z: ball screw
		TAIWAN PMI/HIWIN guide
		Step motor or servo motor
Control System	CNC system	WEIHONG NK105
	Memory	512M
	LCD Panel	3"LCD
	Interface	USB
Accuracy	Moving	±0.01/300mm
	Repeat	±0.005mm
	DPI	0.002mm
Speed	Max.Moving Speed	20000mm/min
	Max.Engraving Speed	15000mm/min
Software	Computer OS	Window98/2000/XP
	Command	G-Code/HPGL-3D
Spindle	Power	5.5kw ( stone machine dedicated water cooling )
	Rotary speed	0-24000rpm
	Collet	ER25-Φ3.175-Φ16
Power supply	AV	220V/50HZ or 380v/50HZ
Lubrication System	Thin oil lubrication	Auto /Hand
Package	Weight	1500kg
	Dimension	2100*3500*1700mm
Working environment	Temperature	+5ºC to +35ºC
	RH	30%-75%
	Air pressure	86-106Kpa

Warranty and service for this machine:
1.18 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary
1. service before sales: our salesman will try to know your requirement about our cnc router specificaiton and what kind of work you will do . then we will offer our best solution for your requirement. then it can confirm each customer can get their real needed machine.

2. service during production: we will send photos of machines during making. so customers can know more details about the procession of making their machines. and give theirm suggestions.

3. service before shipping: we will take photo and confirm with customers the specification of their orders to avoid the mistake of wrong making machines.

4. service after shipping: we will check when the machine arrive your sea port and approximate date of arrival. so customers can know when it will arrive and make enough preparation.

5. service after arrival: we will confirm with customers if machine is in good condition. and see if any spare parts missing .

6. service of teaching: there are some manual and video about how to use machine, if some customers have question about it. we will have professional technist to help them to install and teach how to use through skype ,calling, vedio or mail.

7. service of warranty: we offer 1 year warranty for whole machine and half year warranty for spindle. if any parts of our machine is broken. we will replace it for free.

8. service in longterm : we hope every customer can use our machine easliy and have a fun of it. if customers have any problems of machine in 2 or 3 , 5 years , they can contact us . we will always here waiting for you.

---
