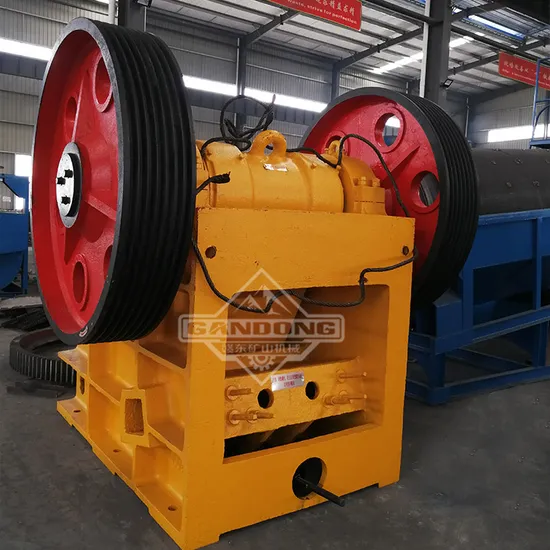

Rock Stone Machinery Jaw Crusher Mining Machine

Product Description

rock stone machinery jaw crusher mining machine
We can build the jaw crusher as you require, stationary type or mobile type, diesel engine or electric motor, anything you want. We also have hammer crusher, impact crusher, double roller crusher etc
Features
Big reduction ratio
Even granularity
Simple structure
Reliable working condition
Convenient repair and economic operation
Widely used for mine, smelting, building material, road, railway, irrigation works
Chemical and materials with compression strength no more than 320 Mpa.
Description
Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.
The motor transmits power through belt, drives the moving jaw do periodic motion to
the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
FAQ
Weclome to visiting our factory to check the machines or send to my email as follow information.
1.Capacity of project?
2.Particle size of original ore?
3.What kind of mineral ores ?
4.Kindly let me know the electric power of your country , here we are 380V 50HZ 3PHASE
We will suggest you the best type and good machines for respect customers.
Why choose our company machine?
1. We are factory (NOT Dealer)
All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make
Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2. We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
4. If you are new for this business, I will help you
Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on
5. We will recommend a suitable type for you and send you a best quotation
Our Services
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
Technical Specifications

Type	Feed Opening (mm)	Max. Feeding Size (mm)	Adjusting Range Of Discharge Opening (mm)	Capacity (t/h)	Rotation Speed Of Eccentric Shaft (r/min)	Motor Power (KW)	Total Weight (t)	Dimensions (mm)
PE-150*250	150*250	125	10-40	1-3	250	5.5	0.6	720*660*850
PE-200*300	200*300	180	15-50	2-6	260	7.5	1	910*750*990
PE-200*350	200*350	180	18-70	3-10	260	11	1.3	1000*870*990
PE-250*400	250*400	210	20-60	3-13	300	15	2.8	1300*1090*1270
PE-400*600	400*600	340	40-100	15-40	275	30	5.7	1730*1730*1630
PE-500*750	500*750	425	50-100	20-70	275	55	10.3	1980*2080*1870
PE-600*900	600*900	520	65-130	50-150	250	75	15.5	2290*2290*2400
PE-750*1060	750*1060	630	80-140	80-220	250	110	28	2660*2430*2800
PE-870*1060	870*1060	660	200-260	290-336	250	110	31.5	2810*2430*2800
PE-900*1060	900*1060	685	230-290	160-400	250	110	33	2870*2420*2940
PE-900*1200	900*1200	860	230-290	200-250	200	132	31	3380*2870*3330
PE-1000*1200	1000*1200	850	195-265	315-500	200	110	55	3480*3876*3330
PE-1200*1500	1200*1500	1100	350-360	250-400	180	160	51	4200*3300*3500
PEX-150*750	150*750	120	18-48	8-25	320	15	3.8	1200*1530*1060
PEX-250*750	250*750	210	25-60	13-35	330	30	5.5	1380*1750*1540
PEX-250*1000	250*1000	210	25-60	16-52	330	37	7	1560*1950*1390
PEX-250*1200	250*1200	210	25-60	20-61	330	45	8.5	2140*1660*1500
PEX-300*1300	300*1300	250	20-90	16-105	300	75	11	2720*1950*1600

if you are interested in our products,please send me message in below blank,we will reply within 24hours,or call us.thanks your time.

---
