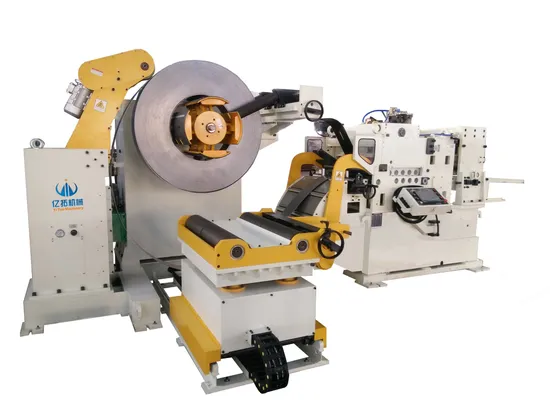

3 in 1 Press Machine Uncoiler Straightener Feeder for Cutting/Slitting/Shear Blanking Line

Product Description

Features of this machine
1. Suitable all kinds of metal sheet straightening and feeding
2. Suitable for metal parts,electron,electrical appliance,toy and auto parts continuous pressing production,straightening and feeding
3. Servo motor of this machine,electrical box and ome other parts are from Japan, with less malfunction and long using time.
4. Chrome plate,high precision, more durable.
5. Input feeding length, easy operation, safe and high stability.
Straightening capacity diagram
1. This diagram is suitable for condition,which material stretch intensity is 0kgf/ mm.
2. Straightening capacity may be change because of different actual condition.
3. About coil outer diameter,material width and deciliter standard load weight,please refer to deciliter attachment diagram of this catalogue.
4. About particular specification manufacturing, please contact us.
Specifications

	Model	NCGK-500	NCGK-800	NCGK-1000	NCGK-1300
Ltem
Material thickness		1.5-8.0(Straighteningrollerl84x5up/5down)
Material width	mm	500	800	1000	1300
Coil Inner diameter	mm	ф450~Ф530	ф450~Ф530	ф450~Ф530	ф450~Ф530
Coilouter diameter	mm	Ф1400	Ф1400	Ф1400	Ф1400
Coil weight	kg	5000	5000	7000	7000
Decoiler power	HP	2.2	2.2	3.7	3.7
Straightening power	kw	5.5	5.5	7.5	11
Expansion style		Hydraulic expansion	Hydraulic expansion	Hydraulic expansion	Hydraulic expansion

Specification Capacity

	Model	NCGK-500	NCGK-800	NCGK-1000	NCGK-1300
Material thickness
2.0		500	800	1000	1300
4.0		500	800	1000	1000
6.0		450	450	450	450
8.0		253	253	253	253

Customer's Application NCGK series decoiler straightener and feeder machine is testing in our factory and working in customer's factory.
FAQ
Q: Are you a factory or trading company?
A: We are a factory which has been producing stamping automation machines for more than 20 years.
Q: What's the delivery time?
A: The standard machine is 25 to 30 working days after payment. For compact coil feed lines or whole metal stamping lines, it needs 30-70 workdays depends on different specifications and production plan in our factory,we will confirm the delivery time based on the specific project itself.
Q: Do you receive OEM or ODM?
A: Yes, we warmly welcome customers to do OEM and ODM in our factory.
Q:What's warranty time of your machine?
A:Usually the warranty time is 12 months. Also the warranty time can be extend acorrding the specific requirements.
Q:What after-sales service does YITUO provide?
A:For the standard decoiler straightener feeder machine, it's easy to install and debug it, most of our customers can do it by themselves; And what's more, our technical engineer can teach your operators how to install and operate it.
For the compact coil feed machine and complete metal stamping line,YITUO can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site.
Q: What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Pipe diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per month
