Providing Custom Specification 30MPa Tensile Strength UHMWPE Sheet

Product Description

Product Description

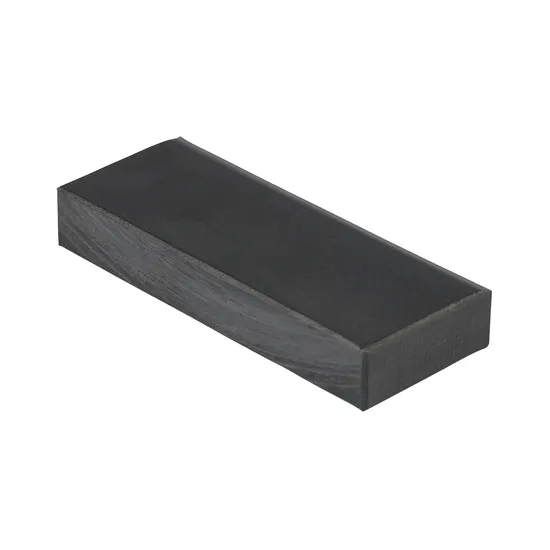

UHMWPE Sheet exhibits the properties of excellent impact strength, abrasion resistance, low coefficient of friction, as well as very good chemical resistance.This industrial-grade material is also moisture, stain, and odor resistant, and is FDA-approved to be used in the food processing industry.

FEATURES	INDUSTRY
High impact strength	Solar Industry
Low coefficient of friction	Nuclear Industry
High abrasion and wear resistance	Mining Industry
Self-lubricating	Marine
Very good noise absorption	Bulk Material Handling
Chemical and corrosion-resistant	Mechanical Engineering Industry
Moisture resistant	Sports & Recreation
Non-toxic / Non-hazardous	Food & Beverage
Stress crack resistant	Conveyor & Automation
Easily machined	Waste Water Treatment

Thickness & Size: As the most professional supplier in China, we have the most mold sizes for our customers to choose from.
This is very helpful to save raw materials and shorten the delivery cycle. In addition, we can also provide high-quality cutting services to meet the specific needs of different customer for sizes. The thickness of our UHMW board can reach up to 200mm, and the maximum size is 2.4m*6m. This can meet the size requirements of most customers.

Standard Size (mm)	Thickness (mm)
1000 × 2000	8-150
1020 × 4080	8-150
1220 × 2440	8-150
1240 × 3700	8-150
1240 × 4040	8-150
1260 × 4900	8-150
1300 × 6000	8-150
1500 × 3000	8-150
2000 × 4000	8-150
2400 × 6000	8-150
Customizable	Customizable

Product Parameters

Physical properties	Test Standard	Value	Unit
Density	ASTM D792	0.93	g/cm³
Water Absorption	ASTM D570	<0.10	%
Mechanical properties	Test Standard	Value	Unit
Hardness	ASTM D2240	62-66	Shore D
Wear Resistance	Sand-slurry	100	-
Tensile Strength at yield 23 ºC	ASTM D638	3100	psi
Tensile Modulus	ASTM D638	100000	psi
Elongation at Break	ASTM D638	>350	%
Flexural Strength	ASTM D790	3500	psi
Compressive Strength	ASTM D695	3000	psi
Coefficient of Friction, Dynamic	-	0.10-0.22	-
Coefficient of Friction, Static	-	0.15-0.20	-
Izod Impact, Notched	ASTM D256	No Break	ft-lb/in
Izod Impact Strength	ASTM D4020	125	KJ/m²
Thermal properties	Test Standard	Value	Unit
Service Temperature	-	-200 to 90	ºC
Melting Point	ASTM D3418	130 to 135	ºC
Vicat Softening Point	ISO 306	80	ºC
Heat Deflection Temperature	ASTM D648	43	ºC
Flammability, UL94	-	HB	-

Company Profile
With over 20 years of experience and expertise, Weimin is a leading manufacturer and supplier of high-quality UHMW-PE sheets and machined parts. We cater to a wide range of applications and industries, providing exceptional products that meet the diverse needs of our customers.
With unrivaled experience working with high-performance UHMW-PE, we can provide you and your team with design material to suit your needs. We handle the entire process from quotation requests through to production of the finished product.
Our factory is a hub of many state-of-the-art machines, which means that we can manufacture your UHMW-PE sheets and customized parts on time and at all times
Zhenjiang Weimin New Material Products Co.,Ltd is mainly engaged in the development and production of UHMWPE sheet, round bar, tube, film, roller, chain guide rail, wear strip and various customized products. The company has world- class production line of sheets - 6 sets of the three-station four-layer production line, 2 sets of US production line, 40 sets of continuous molding production line, 60 patent extrusion production lines, 6 special extrusion production lines, 6customized - profile tooling machines, CNC machining centers and 20 sets of various machining equipment, we also have our own lab which can test some normal parameter per customer's requirements.
Our excellent product positioning and high-end quality make us have deep cooperation with many Top 500 companies, and we also assist our partners to develop and produce high-quality UHMWPE components. Based on excellent properties on wearing resistance. Self- lubricating. Anti-impacting. Anti- corrosive, our products are very popular in China mainland, and also in the United States, Germany, Italy. Japan, South Korea, Thailand, etc. Packaging & Shipping
FAQ Q1: What colors of the UHMWPE sheet can you produce?
A1: The regular colors are white, green, blue, black, yellow, grey, and so on. The colors also can be customized according to the Pantone or Ral color card number.
Q2: What is your MOQ of UHMWPE sheet?
A2: Commonly, there is no specific MOQ
Q3: What is your delivery time?
A3: It depends on the volume, for the regular order, it takes around 7 days for production.
Q4: How can I get a sample?
A4: Commonly, the small samples are free for checking the quality.
Q5: What is your payment?
A5: T/T or 100% irrevocable L/C at sight
Q6: What is the main size of the UHMWPE sheet?
A6: Our standard sizes are 1m*2m, 1.22m*2.44m, 1m*4m, 2m*4m, etc. and the sizes also can be customized according to your demand.
Q7: Are you a trading company or manufacturer?
A7: We are manufacturer
Q8: Will the inspection be arranged before shipment?
A8: Yes, every step before loading will be carefully checked to ensure that the products you received are in good condition.

---
