Full Automatic Crescent High Speed Toilet Paper Making Production Line with Cylinder Mould and Rewinding Machine

Product Description

Full Auto Paper Making Machine
Product Description
Toilet paper production according to the different types of paper machine is divided into: fourdrinier paper machine, cylinder mould paper making machine, crescent paper machine. More paper width is divided into 787mm, 1092mm, 1575mm, 1880mm, 2400mm, 3500mm, etc., the output can reach 1-50 TPD.
The toilet paper production line can use different kinds of raw material, such as waste paper, recycled paper and wood pulp such as wood, bamboo, straw and bagasse to produce, and the finished products can be toilet paper, napkins, facial tissues and kitchen paper.
Main Features
1.output paper :toilet paper, tissue paper
2. raw material: waste paper, virgin pulp
3.capacity: 3-50 ton per day
4. net paper width: 1092-3600 mm
5.output paper weight: 13-30 g/ m 2
6. working speed: 180-800 m/min
7. drive way: Alternating current, speed control, section drive

Product Parameters

Output paper	High strength corrugated paper	Corrugated paper core	Template/newsprint paper
Net paper width	1575-5600mm	2400-5600mm	2400-3880mm
Gram weight of finished paper	80-130g/m2	55-80g/m2	50-80g/m2
Production capacity	400T/D	200T/D	150T/D
Design speed	500m/min	350m/min	400m/min
Work speed	450-500m/min	300-350m/min	350-400m/min
Center distance	2400-7000mm	3600-7000mm	3600-5000mm
Transmission form	Frenquency control	Frenquency control	Frenquency control
Layout form	Monolayer layout	Monolayer layout	Monolayer layout
Auxiliary equipment	Closed gas hood	/	/

Toilet paper (Vacuum mould/crescent forming device)	Testliner board/high-strength corrugated paper	Ordinary corrugated paper	Coated whiteboard paper
1092-3600mm	2400-5600mm	2400-5600mm	1760-5600mm
12-20g/m2	80-180g/m2	65-110g/m2	180-400g/m2
50T/D	400T/D	300T/D	550T/D
800m/min	500m/min	600m/min	400m/min
700-750m/min	450-500m/min	500-550m/min	300-350m/min
1900-4800mm	3600-7000mm	3600-7000mm	2800-7000m/min
Frenquency control	Frenquency control	Frenquency control	Frenquency control
Monolayer layout	Monolayer layout	1.5 layout	Monolayer layout
Breathing gas hood	Closed gas hood	Closed gas hood	Closed gas hood

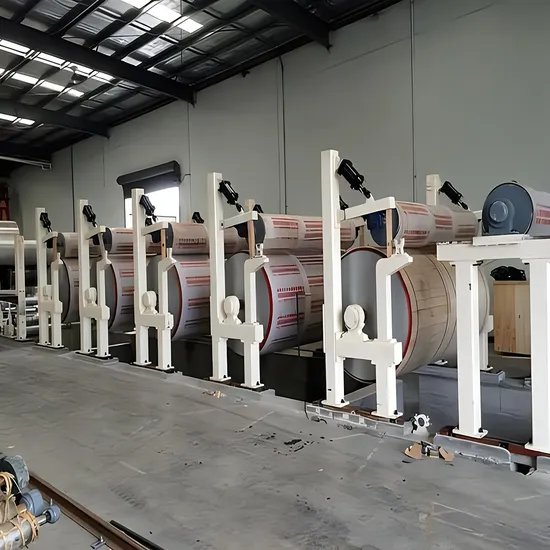

Detailed Photos
Product Process
The production process of toilet paper includes raw material preparation, paper pulping, paper making, and subsequent processing equipment can be used to achieve the general sale of toilet paper.
(1) Raw material preparation: raw materials are processed by soaking, shredding and other means to prepare for subsequent pulping.
(2) Pulping section: processing raw materials into pulp.
(3) Paper-making section: the good pulp is made into jumbo rolls of toilet paper.
(4) Toilet paper deep processing section: jumbo rolls of toilet paper are made into napkins, facial paper, kitchen paper and other saleable products.
Workshop
Packaging & Shipping
Company Profile
Qinyang NH Paper Machinery Industrial Group Co,.Ltd (referred to NH Paper) , located in Qinyang City Henan Province, is a professional machine manufacturing factory integrating design, production and sales. Its main business includes all various of paper making machines, pulping equipment, paper making mesh and paper making felt.
NH Paper has high- precision CNC machine tools and processing centers, advanced equipment and testing instruments, sophisticated technology , a strict and complete quality management system. NH Paper also gathers a scientific and technological team with professional technology and advanced level, who make full use of new technology , processes and material to ensure the stability and reliability of product.
Look forward to hearing from you sooner and establishing a long friendly business relationship with you . We promise we will do our best to help you .Besides ,welcome you to visit our factory at anytime.

---
