Bsdf Dried Herbs Chinese Herb Pigeon Pea Beans Lentils Cassava Leaf Ginger Tea Leaves Flower Grinder Machine

Product Description

Dried herbs Chinese herb Pigeon pea beans lentils cassava leaf ginger tea leaves flower grinder machine
Detailed images

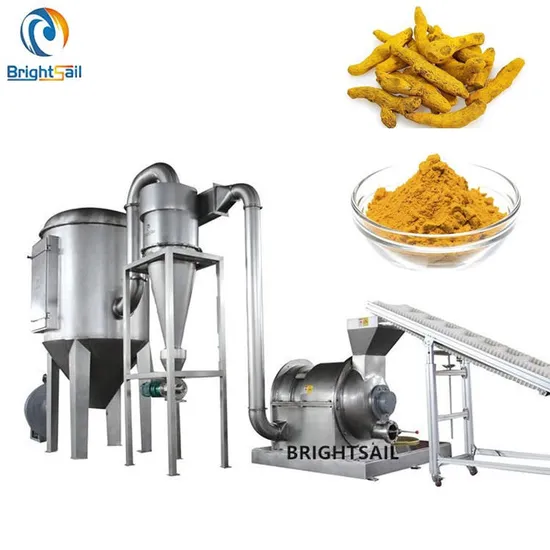

BSDF spice grinder machine includes:
1) mill part
2) cyclone (discharge system)
3) dust collect system
4) blower
Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.
The production process is dust-free and continuous. BSDF spice grinder machine is suitable for grinding cassava, chickpea, spices, like ginger, turmeric, chilli...etc.

TECHNICAL DATA OF GRAM FLOUR MACHINE
Model	BSDF-750	BSDF-650	BSDF-550	BSDF-450
rotor speed (rpm)	2100-2700	2400-3100	2900-3600	3300-4200
hammer knife qty (piece)	136	112	80	80
grind motor (kw)	75	55	45	37
discharge motor (kw)	1.5	1.1	1.1	0.75
blower (kw)	22	18.5	18.5	15
grind fineness (mesh)	20-120	20-120	20-120	20-120
capacity (kg/hr)	800-1300	600-900	400-800	300-500

Detailed Images


Main features for BSDF grinder machine 1) No need screen or sieve in mill chamber, change powder particle size by changing speed;

2) Because it has no screen in mill chamber, when milling, there is no heat rising in mill chamber;
No need to worry powder get stuck in the screens or product quality get affected by the heat from the mill.
That's why it is very suitable for grinding heat-sensitive material or material contains fiber or oil.

3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly from big raw material, very effective.

4) It can save more power, its capacity is much bigger than other same motor traditional mill.
BSDF hammer mill grinder machine


Certifications


Our Company

Brightsail Machinery has found nearly 20 years, who designs and manufactures overall powder processing solutions for the Chemical, Food, Mineral, Cosmetic and Plastic industries, like powder grinding machines, mixing machines, sifting machines...etc.
Brightsail is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted manufacture of creative and value added process solutions.
Overseas Clients


Our Services
Packaging & Shipping

*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
Contact Us
Frequently Asked Questions:
Could you pls tell us:
1) What is your raw material? Is it dry?
2) What powder particle size you need? for example, 40 mesh, 60 mesh, 80 mesh,120 mesh...etc
3) What capacity you need? (kg/hr) like 100 kg/hr, 300 kg/hr, 500 kg/hr, 1000kg/hr....etc
4) Voltage: for example, 380V 50Hz 3P; 440V 60Hz 3P; 220V 60Hz 3P...
Please kindly note that 2,700usd is our BS-180 hammer mill's price and BS-180 is our smallest model. The price is related to the capacity and your specific requirements.
We will give you a detailed quotation according to your requests.

---
