| Negotiable | 1 Piece (MOQ) |

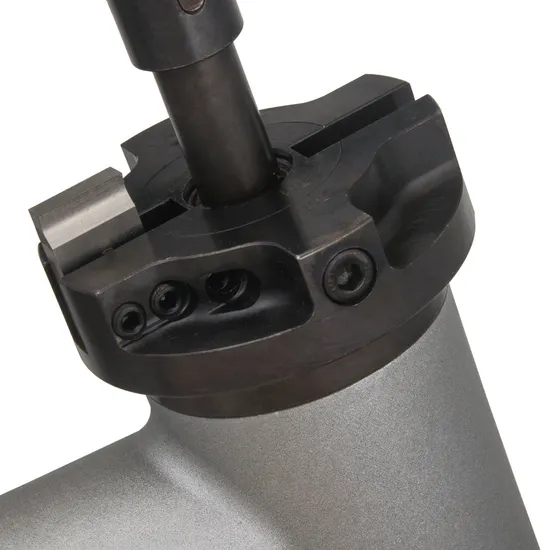

| T-PIPE BEVELING MACHINE The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. Range for pipe ID 12.5-330mm OVERVIEW The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power. FEATURES 1,Cold cutting, without influence the material of the pipe 2,ID mounted, adopt T structure 3,Varity of beveling shape: U, Single-V, double-V,J beveling 4,It can also be used for repairing inner wall and deep hole processing. 5,Working range:12.5-330mm 6,Driven motor: Pneumatic and Electric 7,Customized machine is acceptable CAPABILTY 1,Pipe end beveling 2,Inside beveling 3,Pipe facing BEVELING SHAPE MODEL AND SPECIFICATION
POWER SUPPLIES
TOOLING Integrated tool can be reused by grinding Material:M42M35 Standard supply Insert tool Insert same, different angle holder HolderMaterial: HSS ; Insert material: Cermet or Carbide Optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
