Small Rock Jaw Stone Crusher/Mining Machine for Sale

Product Description

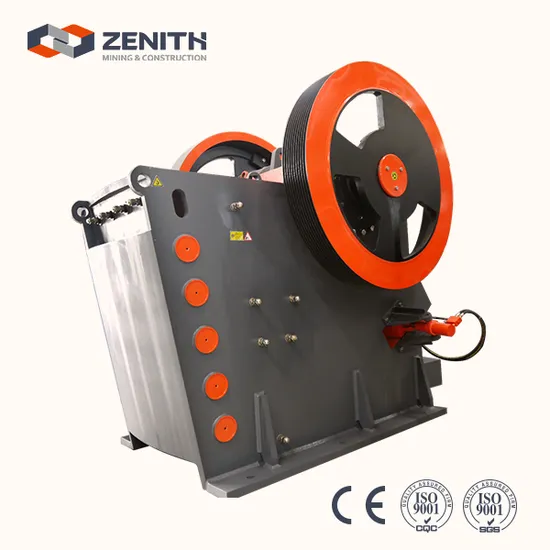

Small Rock Jaw Stone Crusher/Mining Machine for sale
Small Rock Jaw Stone Crusher introduction:
The Small Rock Jaw Stone Crusher is widely used crushing equipment. It has two types, single-toggle type and double-toggle type.

Generally, the Small Rock Jaw Stone Crusher is applicable for coarse/medium crushing ores and rocks with compression strength under 250Mpa. The three models of jaw crushers can also crush ores and rocks of different hardness. The PEW single-toggle jaw crusher used for fine crushing is applicable for ores and rocks with medium hardness and below, and the double-toggle jaw crusher can be used to crush ores and rocks with various hardness and high corrosion.


Small Rock Jaw Stone Crusher Fetures and Advantages

The Small Rock Jaw Stone Crusher has advantages of simple structure, reliable working, easy operation, convenient maintenance and low cost for equipment and production. Small Rock Jaw Stone Crusher is widely used in metallurgy, mining, building materials, chemical industry and cement for coarse and medium crushing operations.

Small Rock Jaw Stone Crusher Working principle

The Small Rock Jaw Stone Crusher is mainly composed of frame body, movable jaw part, toggle plates, locking devices with pull-rod spring and driving devices. The movable jaw is driven by motors for complex pendulum through triangle belt. Once the ores are poured into the crushing cavity crush, they will be extruded, split and bended due to the action of the swing jaw. The crushed ores will be discharged out at the moment when the swing jaw leaves the fixed jaw plate.

Small Rock Jaw Stone Crusher technical data:

Model	Feed Inlet Size (mm)	Max Feed Size (mm)	Outlet Range (mm)	Capacity (t/h)	Motor Power (KW)	Weight (ton)	Overall Dimension(mm)
PEW760	760x1100	620	75-200	150-350	110-132	24	2600× 2500× 2200
PEW860	860x1100	720	100-225	200-500	132-160	32	3300× 2320× 3120
PEW1100	1100x1200	930	150-275	300-650	185-200	59.2	4140× 2660× 3560
PEW400x600	400x600	350	35-85	15-70	37	6.8	1920× 1460× 1840
PEW250x1200	250x1200	220	20-40	20-50	37	6	1400× 2050× 1310
PEW250x1000	250x1000	220	20-40	15-50	30	5.6	1400× 1850× 1310

---
