Automatic Finishing Machine Flat Metal Polishing Machine for Laser Cutting Parts Ss Iron Copper

Product Description

Wide belt metal sander | Abrasive belt grinding unit
1. Improve production efficiency: The equipment can polish multiple metal parts of the same thickness at the same time, and we also have different width models for you to choose from. Under the premise of ensuring the highest quality, control your costs. This model is a 300mm wide economic model
2. Ensure product quality: The metal surface polishing machine achieves fine polishing of the workpiece surface by accurately controlling the gap and pressure between the grinding unit and the workpiece, ensuring stable and consistent product surface quality.
3. Strong adaptability: The wide belt polishing machine is suitable for polishing workpieces of different materials and shapes (plates, flat steel, square tubes, etc.). You only need to replace the abrasive belts to meet the polishing needs of different workpieces.
4. Easy to operate: The wide belt sanding machine is easy to operate. You only need to measure the thickness of the workpiece to achieve batch polishing operations. It is easy to master and operate.
5. Energy saving and environmental protection: The wide belt sanding machine can be connected to an industrial wet dust collector, which is beneficial to environmental protection
Machine Parameters

No	Item	Specification

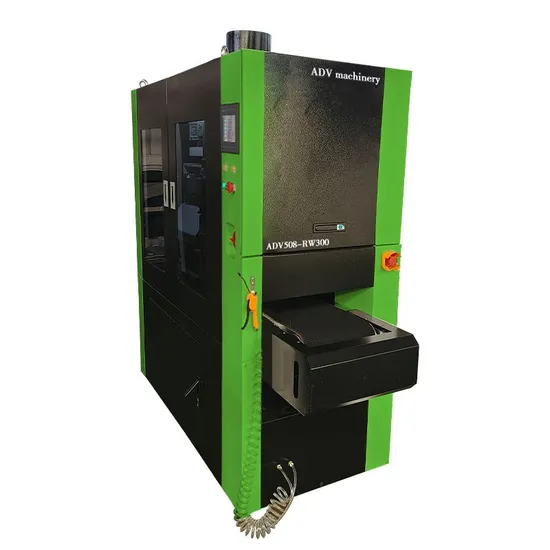

1	Model	ADV 508-R300
2	Available width	0-300 mm
3	Available thickness	0.5-120 mm
4	Minimum processing size	≥30*140mm
5	Feeding speed	1-5m/min (VFD speed regulation)
6	Abrasive belt motor	7.5 kW
7	Feeding motor	1.1 kW
8	Coolant water pump	0.55 kW (Optional)
9	Lifting motor	0.5 kW
10	Total power	10 kW
11	Application	deburring, grinding, snow grain, straight grain finishing

For more solutions, please contact us.
Machine Parts
Single sanding belt 1. For deburring, sanding, and finishing of flat metal sheets (aluminum, copper, stainless steel, etc.).
2. For removing longitudinal burrs from laser-cut, stamping, and water jet-cut workpieces.
3. Standard available widths are 300mm, 450mm, 630mm, 800mm, 1000mm, 1300mm, 1600mm or customized. 4. The metal sander can be used for wet or dry processes.
Why Choose Us
Features of ADV 508-R300 flat surface finishing machine1. The frame is quenched2. The whole frame is polished sprayed and dried to ensure that the paint surface is uniform and scratch-free;3. The contact roller is made of Korean nitrile rubber roller, which has good oil resistance and corrosion resistance;4. The pneumatically controlled eccentric contact roller can be raised and lowered independently. When the equipment fails, the contact roller automatically rises to protect the plate from damage;5. The linear speed of the contact roller is 3-16m/s variable frequency speed regulation;6. Feed speed 1-5m/min;7. Automatic thickness measurement;8. Sand belt correction device;9. Conveyor belt correction device;10. Sand belt break protection;
Company Profile
* About Anhui Advanced Grinding Tools Co., Ltd.
It is established in 2002, owns more than 400 square meters of researching and office space, more than 20000 square meters factory. All machines, passed the European Union CE authentication.
Anhui Advanced Grinding Tools Company has been adhering to the concept of excellent quality and reasonable price. We are committed to optimize the supply chain, strictly control the quality, supervise the production and debugging process of machines, and ensure the delivery of high-quality products to customers. In addition, we have experienced sales and service personnel to provide customers with high-quality pre-sale, after-sales and technical support services.
The company actively explore foreign markets, advocate the business philosophy of integrity management, promote the development of customers is our driving force. Our products are exported to Europe, America and Southeast Asia.
Packaging & Shipping
Ports:Shanghai Port / Ningbo Port / Customer Demand Exhibition / Certification
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Please tell us your product information and polishing process, then we can recommend the suitable machine to you.
Q: How about warranty?
A: 2 years quality guaranty. Lifetime technical support and consumables at the lowest price.
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email. Meanwhile the engineers are available to service overseas. We have agents in different countries too if you want local service or sample testing.
Q. It's not convenient for me to go to China, but I want to see the condition of the machines in the factory. What should I do?
A: If it's not convenient to come to China, our sales manager can take you to know the factory by online video conference.

---
