Z Type Stainless Steel Feeding Equipment

Product Description

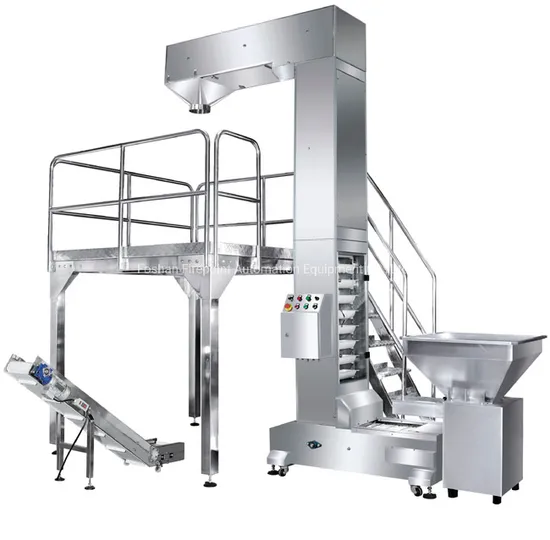

304 Stainless Steel Z Type Bucket Conveyor Application: Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
Features:
1. The buckets are made of a food grade reinforced polypropylene, molded in one piece and can handle temperatures from -10 to 120 degrees Fahrenheit.
2.Vertical conveyor for feeding dry products up vertically and discharging them into a hopper of either a multihead or a linear weigher.
3. All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.
4. The geared reducer motor drived the machine have a stable performance prolong the machine life and easy to maintainance.
5. Optional:
Standard discharge height 3.25 Metres(10.66ft), heights customize available.
Stainless steel construction with optional painted version also available.
Discharge height and discharge positions can be built to clients requirements
Specifications

Name	Bucket elevator
Bucket Volume	1L/1.8L/3.8L/6.5L
Machine structure	#304 stainless steel or carbon steel.
Production capacity	2-3.5 / 4-6 / 6.5-8 / 8.5-12m3/H
Machine height	3896mm for standard (1.8L) or customization
Discharge height	3256mm for standard (1.8L) or customization
Hopper material	Food grade PP/ABS
Power supply	AC 220V Single phase / 380V, 3 Phase, 50Hz; 0.75kw
Packing Dimension	2050 (L)*1350 (W)*980mm (H) for standard (1.8L)

Factory Show Office Area Assembly Area
Material Processing Area
Packing Area
Cases we did
About Shipping
Our services Pre-sales 1. Within 2 hours inquiry feedback between 8:00am--20:00pm
2. 24 hours technical proposal
3. Full assistance product selection
4. Free for designing and drawing
In-sales 1. 4 times producing feedback
2. Full supervision during production
3. 24 hours standby to make sure you can find us
4. Free installation and debugging before delivery
5. Free for training operator and mechanic
After-sales 1. At least 3 times following up
2. Email or online help after good arrived
3. Oversea installation and testing is available
4. Cost price for maintaining the machine and accessories beyond one year warranty.
FAQ Trade terms: EXWORK,FOB,CIF,CFR Payment terms : T/T 30% deposit, 70% balance before delivery Delivery Time : Usually 25-35 days, depends on different order quantity. Shippment : By sea, by air ,by railway or by truck, according to customer requirement Packing :Bubble film wrapping inside, Export Standard Plywood Case outside. Warranty :One year free for replacement of wearing parts, cost price beyond warranty If you have interesting of our product,
