(QHS TYPE) Advanced Beverage Carbonated Water Mixing Machine / Carbonated Drink Mixer

Product Description

Carbonated Drink Soft Beverage Drink Mixing Machine
Product Description

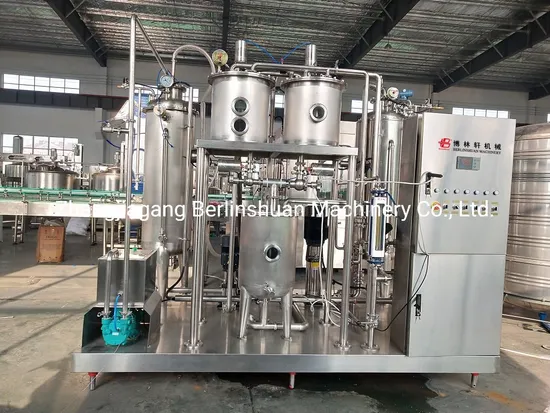

The carbonator is to mix the syrup, water and carbon dioxide together. The equipment is made of degasser, sugar and water mixer, plate type heat exchanger, carbonized tank, pump and pipes. The degassed water is mixed with syrup at the certain ratio, and cooled to 0-2C degree through plate type heat exchanger, than fully contact with the carbon dioxide in the carbonized tank, realizing carbonation.
The pre-cooled and pre-carbonized liquid flows through the inlet valve into the pot, in which, there is carbonic acid gas as well. The liquid flows out the groove and turns into a liquid curtain for better cooling and good carbonic acid gas absorption. Finally, the treated beverage liquid, powered by the carbonic acid gas pressure, flows into the filling machine.
Quality materials are used for this machine. Especially polished and sanitary steel is used for parts directly contacting the liquid. The machine is designed for various beverage productions. Besides the two-step carbonization, high CO2 content and low production temperature ensures the volume ratio of CO2 and 1L water to be 3.0 to 3.5, or higher.
Features
1. Main function of this mixing machine is to mix syrup, water and CO2. Carbon-dioxide content is 2-4 times.
2. It's designed with latest technology from Japan and used for the mixing of soda and other aerated beverage.
3. The parts that contact the liquid are all made of fine low carbon stainless steel in accordance with the requirement of food sanitation.
Advantages:
1. The machine adopts injector for the addition of CO2 and Venturi injector for CO2. The injector can keep constant flow all the time and ensure stationary flowing situation. Besides large area of gasquid mass transfer, small resistance loss, high efficiency, low energy consumption, and simple structure, it adopts the multi-stage mixing pump with reliable performance and low noise. The start/stop controlled by the floating ball liquid level controller on finish cans guarantees the performance of the whole machine.
2. The mixing proportion is accurate and easy for adjustment. With no need of parts replacement, the machine can realize the quick output adjustment and the proportion of syrup and water. The beverage water and thin syrup enter mixing tank after proportioning of the manual adjusting valve with scale. As the water tank and sugar tank are of the same height and pressure, the proportion within the mixing tank remain stable. Prior to access to the mixing tank, they are fully mixed in the mixer; The beverage mixing ratio can be ensured.
3. In the degassing tank, the vacuum pump makes the pressure of dissolved gas in water sprayed into the tank as mist higher than that on the water surface, thus releasing above 90% of O2 from the dissolved water.
4. The machine adopts the plate heat exchanger for cooling. When the beverage water and thin syrup enter mixing tank through the manual adjusting valve with scale, the mixing pump enters the plate heat exchanger after pressure lifting, fully mixing the beverage water and thin syrup. At the same time, making use of the inherent feature of plate heat exchanger, ice water is added on the other side, not only mixing the beverage water and thin syrup, but also reducing temperature and improving carbonation effect. Before entry, appropriate CO2 can be added for a better blend of sugar, water and gas.
5. The machine is convenient to adjust the gas content. According to the requirements of beverage gas content, the adjustment can be done through proper operation.
6. The machine has perfect automatic control system, featured by coordinate action, simple structure, continuous production, and high automation.

Model	QHS-3000	QHS-5000	QHS-7000	QHS-10000
Production capacity (kg/h)	3Ton	5Ton	7Ton	10Ton
Water-Syrup mixing proportion	3:1-10:1	3:1-10:1	3:1-10:1	3:1-10:1
Gas Content (CO2:H2O)	2.0-3.8	2.0-3.8	2.0-3.8	2.0-3.8
Mixing precision	≤2%	≤2%	≤1.5%	≤1%
Temperature of the chilled water(ºC)	0-4ºC	0-4ºC	0-4ºC	0-4ºC
Pressure of chilled water(Mpa)	0.15-0.25	0.15-0.25	0.15-0.25	0.15-0.25
Temperature of syrup(ºC)	2-8ºC	2-8ºC	2-8ºC	2-8ºC
Pressure of syrup(Mpa)	0.1-0.2	0.1-0.2	0.1-0.2	0.1-0.2
Pressure of CO2(Mpa)	0.7-0.8	0.7-0.8	0.7-0.8	0.7-0.8
Purity of CO2	>99.9%	>99.9%	>99.9%	>99.9%
Pressure of storage tank(Mpa)	0.45-0.55	0.45-0.55	0.45-0.55	0.45-0.55
Power(KW)	5.8	6.3	6.5	7.2
Overall dimensions (mm)	2000×1400×2200	2100×1500×2270	2150×1700×2380	2200×1750×2440
Weight(KG)	1500	2500	3500	5500

---
