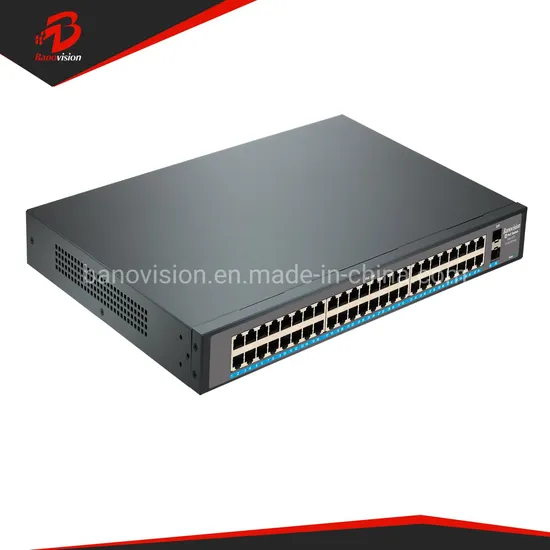

Banovision 48 Port Ai Watch Dog Gigabit Ethernet Poe Switch with 2 SFP Port, Unmanaged 48 Port Poe+ Network Switch, Rackmout

Product Description

48CH 48 10/100/1000Mpbs POE Switch
Features:
* Provide 48 10/100/1000Mpbs RJ45 ports (support PoE + power supply)
* Provide 2 10/100/1000Mpbs SFP uplink port
* Each port supports MDI/MDIX auto flip and auto negotiation
* The whole machine provides 800W of electrical power, and the maximum PoE power of a single port is 30W.
Other functions: Gigabit VLAN
Application:
* Wireless Access Point
* IP Camera
* IP Phone
* Computer Networks
Specification:

MoA17:B30	BN-PK4802AI
POE Port	48 10/100/1000Mpbs RJ45 ports (supporting PoE+ power supply); 2 10/100/1000Mpbs SFP uplink port
PoE supply power	48 10/100/1000Mbps RJ45 ports support PoE+ power supply The maximum power supply of the whole machine is 800W The maximum power supply for a single port is 30W
Whole Power	Single end≤30W Whole machine power≤800W
Network Standard	IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.1d,IEEE802.1w, IEEE802.1s,IEEE802.1Q,IEEE802.1p,IEEE802.3x, IEEE802.3af,IEEE802.3at
PoE connection	Each port supports IEEE802.3af/at Support 1/2+, 3/6-pair
Forwarding Rate	100BASE-T: 148800pps/port
	1000BASE-T: 1488000pps/port
Performance	Store and forward Support 8K MAC address table depth bandwidth 56Gbps
Port Function	Power supply priority mechanism, fast and forwarding, MAC automatic learning and aging
	IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
LED Indicator	Each port has a LINK/ACT Whole machine power indicator VLAN indicator
Working Environment	Working temperature: -10ºC--55ºC
Weight	4.6KG
Size	440mm×285mm×44mm(L×W×H)

---
