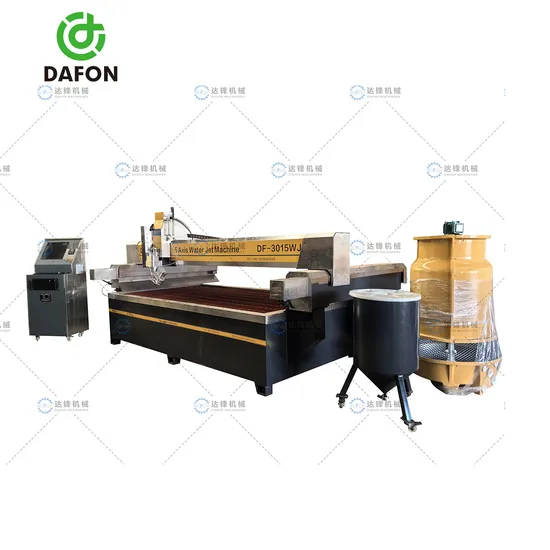

Dafon High Pressure CNC Waterjet Cutter High Speed 5 Axis Water Jet Stone Concrete Cutting Machine for Processing Mosaic Stone Countertop Basin

Product Description

Product Description

Machine Features

1. The spindle adopts high-frequency processing2. The cutting speed is controlled by the inverter to achieve step-less adjustment, the head movements, 360° rotation, and position use the hydraulic transmission to move. it can be cut manually and fully automatically easily.
3. It adopts a CNC programmable control system and touch screen operator and is combined with high precision encode positioning(Omron brand encoder)4. It applies to cutting valuable and large-sized stone board for many specifications
5. The water jet machine can complete fine processing and shapes that cannot be completed by conventional machines.

Technical Parameters

Model NO.	DF-3015WJ
Usage	Ceramics, Jadestone, Cement Brick, Granite, Marble
Application	Machinery & Hardware, Construction, Stone Industry
Source Voltage	Optional
Automation	Semi-automatic/Automatic
Cutting Ability	High Speed
Control	Artificial/CNC
Max Cutting Depth	170mm
Motor Power	37 Kw
Dimension	6000 × 4800 × 3000mm
Weight	5.2t
Worktable Tilt Degree	None
Transport Package	Container
Specification	6000 × 4800 × 3000mm
Trademark	Dafon
Origin	China
Production Capacity	120-200pieces/Year

After Sales Service

We provide skilled and richly experienced technicians for installation and after-sales service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Main Parts of the Machine:

1.Table & control system:
A,It is a full range of cutting. Arbitrary plane curve cutting can be performed.
B,Lathe structure is specially reinforced. So the cutting header won't be shaken during running at a high speed & high machining accuracy.
C,All the screw and guides are the well-known brand of international. X and Y axis is with unique injection screw guide rail lubrication. It is waterproof and dustproof well. It can ensure the processing accuracy of CNC cutting table and it can be maximize extended the service life of the screw guide rail
D,The cutting head is equipped with reliable pneumatic high pressure water switch control device to improve production efficiency
E,Special design of the sand valve and simple structure, to make the sand flow more smoothly and prevent the water counter current.
F,All stainless steel protective cover, dust-proof, waterproof, anti-rust, anti-corrosion, easy to clean, keeps the cutting platform as bright as new all year round.
2. Intelligent control cabinet
a.Automatic control cutting materials, simulate machining trace, simulate running.
b.To calculate the cutting time automatically, introduce the processing budget accurately
c.Set a limit of the axis, and protect pipette tips, to avoid exceeding the running range.
d. It can choose to process, pause, automatic line, and continue breakpoint exactly, breakpoint fallback, and then continue.
e. Processing local, repeat processing
f. Cutter lift-off between parts
g.It can change the cutting height of the header at any time during the processing.
h.The system will automatically load the controlling parameters, Including opening and closing the valve in turn, Distribute buck pierce time automatically.
i. Distribute cutting speed, it can process automatically according to the size of the arc and angle For brittle material, take the valve
automatically to control buck pierce. It will turn to high cutting after buck pierce.
j.Set action after the cutting is finished: relief pressure automatic, raising cutter, back to fix points, etc.
3. cooling tower
To control the oil temperature effectively, it is better to use an economical and practical cooling tower. This system can effectively control the rise of temperature during the operation of the high-pressure system to achieve the effect of prolonging the service life of the seal and high-pressure parts, and save water.
4. Automatic Sand-feeding system
It is the sand-feeding for the water jet machine. It will transfer the sand to the bucket automatically. The operation is easy. It can improve the automation degree of the equipment and reduce the labor intensity of the operator. capacity 100KL to ensure the continuous cutting amount of sand required during 200 to 300 minutes.
5. high voltage system
Power shenghua motor 37KW
Oil pump discharge capacity 80ML/R
Flow 3.7L/min
Nozzle 0.33mm
Rated pressure 450Mpa/Psi
Working pressure 10-380Mpa/Psi

About Us

DAFON Machinery is located in Quanzhou City, the hometown of overseas Chinese in southern Fujian Province, we are a professional stone machinery company that integrates design, manufacture, and sale as a whole. We mainly produce a curbstone assembly line machine, infrared trimming machines, automatic trimming machines, infrared middle block cutting machines, single-arm multi-blade cutting machines, large gantry cutting machines, bridge stone cutting machines, mining machines, and all sorts of stone cutting machines.

Packaging & Loading:

More Products

Exhibition Show

Our Certificate

FAQ

Q. Do you have different quality grades and bonds for different materials?
A. Yes, for more than 10 years, we have accumulated rich experience in diamond tool production. Regular quality grades(A/B/C) and bonds(hard/medium/soft) are available for various types of materials and machines. We can customize products as per special requests(price/dimension) from clients.

Q. Do you offer free samples?
A. Normally we do not offer free samples. But further solutions will be discussed respectively upon request.

Q. If we need technical support, can you offer us?
A. Sure, we have a pre-sale and after-sale service team to offer technical support, Well-trained salespersons and engineers are always ready to respond to your technical doubts.

Q. Are you a manufacturer or trading company?
A. We are a professional stone machinery manufacturing company. We have our production team and R & D team.

Q. How about the quality of the machines?
A. We have our own experienced QC. All machines are manufactured strictly according to the national and international standards. Our machines will be strictly inspected and controlled before delivery.

Q. What is the MOQ?
A. One set machine
