Gutter Metal Roofing Sheet Making Roll Forming Machine

Product Description

Gutter Metal Roofing Sheet Making Roll Forming Machine

HOT SALE PRODUCTION:
Roofing panel forming machine
Double layer forming machine
Glazed tile forming machine
C&Z purlin forming machine
Sandwich panel production line
Stone coated roof tile machine
Floor decking forming machine
Downpipe,gutter ,walk board roll forming machine
Car panel forming machine
Siding panel & anode plate forming machine
Storage Rack forming machine
Ridge cap machine
Highway guardrail Machine
Stud,truss,furring machine
Shutter door ,door frame forming machine
Bending,shearing,slitting machine
Curving machine
1. The advantage of kexinda steel gutter forming machine
gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
2.Main parameter of water gutter cold roll forming equipment

No.		main parameter of gutter roll forming machine
1		Suitable to process	Color steel plate
2		Width of the plate	200-600mm
3		Rollers	14-16rows
4		Dimensions	8.6*0.8*1.2m
5		Power	4+3kw
6		Thickness of the plate	0.3-0.8mm
7		Productivity	8-12m/min
8		Diameter of the roller	52mm
9		Weight	About 4.5 T
10		Voltage	380V 50Hz 3phases
11		Rolling material	Carbon Steel 45#
12		Material of the cutting plate	Cr12
13		Processing precision	Within 1.00mm
14		Control system	PLC control
15	Side panel of machine		14mm
16	Main structure of the machine		300 H steel
17	Weight		About 4.5 T

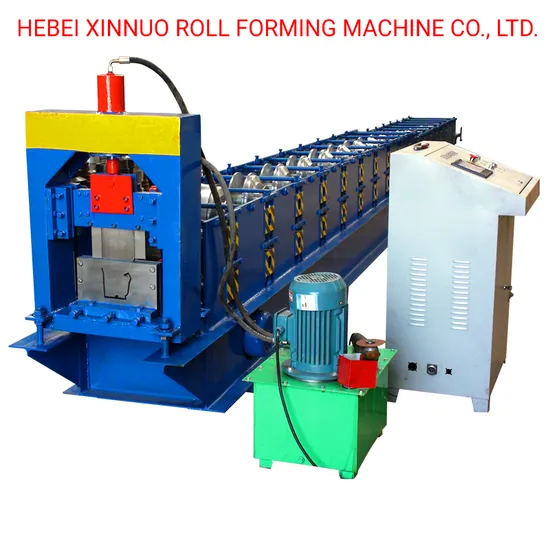

3. some pictures of kexinda steel water Gutter Forming Machine
4.Packaging & Shipping
Main machine is nude, the computer control box is packed with wooden fram

5.FAQ

1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.

---
