Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Mechanical Transmission
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Keywords
Mini Excavator Digger
Hydraulic Pump Brand
Kawasaki
Hydraulic Cylinder Brand
Hydac
Unique Selling Point
EPA Engine
Warranty of Core Components
2 Years
Roof / Cab
Roof (Cab Option)
Color
Customers Requirements
Moving Type
Crawler Excavator
Video Outgoing-Inspection
Provided
Marketing Type
EPA Euro5 Standards
Maximum Digging Height
2580 mm
Transport Package
1. Standard Exported Plywood Case2. Container
Production Capacity
200 Unit/Units Per Month
Product Description

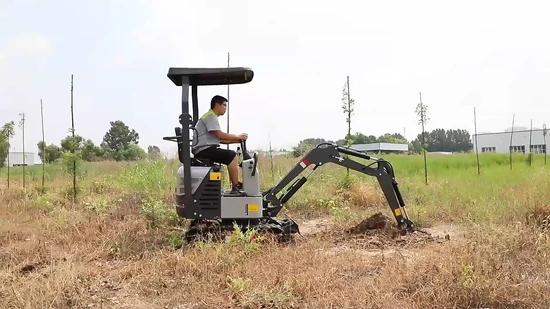

Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, adjustable dozer blade, easy to disassemble simple shed, 360 degree rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization. The tailless type 10 mini excavator is specially designed for high-end users. It is manufactured with precision and high-end accessories. Engine meets Euro-V emission standards and obtained EPA-4 Certification. It can withstand user inspections. It is durable and low-loss. The service life is 2-3 times that of ordinary excavators.
The high-end SE10 mini tailless excavator is the most popular excavator for consumers, which can reach 100% user satisfaction.
Details Images
More Hot Products
Model
| SE08
| SE10
| SE13
| SE15
|
Operating Weight
| 600 kg
| 1,000 kg
| 1,300 kg
| 1,500 kg
|
Rated Power
| 8.6 kw (11.7 hp)
| 8.6 kw (11.7 hp)
| 14.1 kw (19.1 hp)
| 14.1 kw (19.1 hp)
|
Engine Brand
| KOOP
| KOOP
| KOOP
| KOOP
|
Max. Digging Depth
| 1,220 mm
| 1,650 mm
| 1,800 mm
| 1,800 mm
|
Max. Digging Height
| 2,400 mm
| 2,580 mm
| 2,500 mm
| 2,500 mm
|
Overall Dimension
| 2,480*730*1,375
| 2,550*950*2,200
| 2,450*980*2,200
| 2,450*980*2,200
|
Model
| SE16
| SE17
| SE20
| SE25
|
Operating Weight
| 1,600 kg
| 1,700 kg
| 2,000 kg
| 2,500 kg
|
Rated Power
| 19 kw (26 hp)
| 29 kw (39 hp)
| 20 kw (27.2 hp)
| 22 kw (30 hp)
|
Engine Brand
| LAIDONG
| LAIDONG
| CHANGCHAI
| LAIDONG
|
Max. Digging Depth
| 1,800 mm
| 1,900 mm
| 2,150 mm
| 2,350 mm
|
Max. Digging Height
| 2,590 mm
| 2,820 mm
| 2,950 mm
| 3,600 mm
|
Overall Dimension
| 2,550*1,100*2,200
| 2,550*1,100*2,200
| 2,400*1,150*2,200
| 4,400*1,300*2,300
|
Model
| SE40
| SE60
| SE180
| SE230
|
Operating Weight
| 4,000 kg
| 6,000 kg
| 18,000 kg
| 23,000 kg
|
Rated Power
| 34 kw (46.24 hp)
| 37.4 kw (51 hp)
| 93 kw (125 hp)
| 124 kw (169 hp)
|
Engine Brand
| CHANGCHAI
| YANMAR
| CUMMINS
| CUMMINS
|
Max. Digging Depth
| 3,050 mm
| 3,820 mm
| 5,975 mm
| 6,480 mm
|
Max. Digging Height
| 4,680 mm
| 5,760 mm
| 9,430 mm
| 9,410 mm
|
Overall Dimension
| 4,400*1,700*2,450
| 5,850*1,880*2,575
| 8,540*2,720*2,920
| 9,590*2,980*3,185
|
Custom Attachments
Customer Feedback
Certifications
Packaging and Shipping
Company Profile
Shandong XiangGong Machinery Co., Ltd was established in 2016, located in Jining City, Shandong Province, China (Mainland). SDXG is an comprehensive enterprise of R&D, production, sales as one. SDXG has passed ISO 9001 certificate and CE certificate. SDXG's products are sold all over the world, especially America, Europe, Southeast Asia, Africa, and always get good market feedback. Now, SDXG has more than 30 agents all over the world. Each year, SDXG allocates 6% of its total sales revenue to R&D projects, with the goal of providing even more world-class products for customers everywhere. Until now, SDXG had applied for over 2,000 patents. With over 1,500 patents already authorized. While constantly working to improve its product quality, SDXG is also committed to providing comprehensive and world-class customer service. With its unique advantages, SDXG continues to strive to help build a better world.
>>
