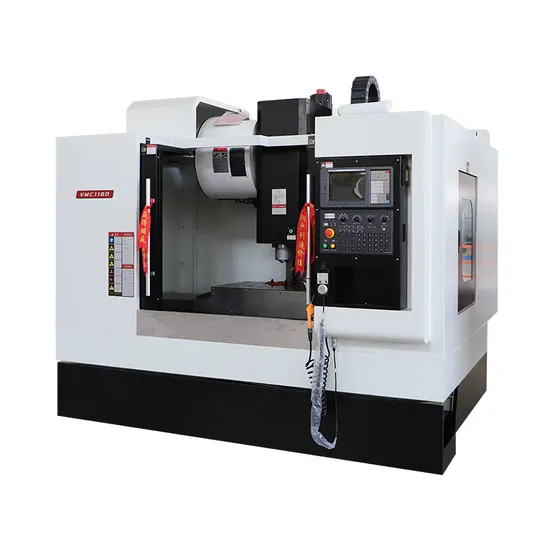

3 Axis Vertical Machining Center Machine 1160 CNC Milling Machine

US$25,400.00-26,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC1160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size (mm)
1200*600
Number of Axes
5
Table Travel (X) (mm)
1100mm
Table Travel (Y) (mm)
600mm
Type
Vertical
Weight (T)
6.8 T
Table Travel (Z) (mm)
600mm
Positioning Accuracy (mm)
0.0075
Repeatability (X/Y/Z) (mm)
0.005
Spindle Motor Power(Kw)
11
Min. Time of Tool Change(S)
2
Tool Magazine Capacity
16, 24, 32
Key Selling Points
Competitive Price
Place of Origin
Shandongchina
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Food
Transport Package
Export Packing in Wooden Cases
Specification
2900*2550*2650
Trademark
FUXUAN
Origin
Shandongchina

Packaging & Delivery

Package Size
3440.00cm * 2530.00cm * 3000.00cm
Package Gross Weight
6850.000kg

Product Description

SPECIFICATIONS Units VMC1160
Table size mm 1200*600
X axis travel mm 1100
Y axis travel mm 600
Z axis travel mm 600
Max. worktable load kg 1000
T slot(number-width*pitch) - 5-18*125
Max. spindle speed rpm 8000
Spindle taper BT BT40
Main motor power kw 11
X/Y/Z rapid traverse speed m/min 24/24/20
Cutting feed speed mm/min 1-8000
Guide rail type - Linear rail
Distance from spindle axis to column surface mm 650
Distance between spindle nose and table surface mm 100-700
Positioning accuracy mm ±0.0075
Repeat positioning accuracy mm ±0.005
Tool magazine - Arm 24
Max. tool diameter mm 78/120
Max. tool weight kg 8
Machine weight kg 7000
Overall dimension mm 3400*2500*2960

FAQ Q1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you . Q2: Where is our factory located? How can I visit there? A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone, Tengzhou City, Shandong Province, China. Q3. What is your trade terms? A : FOB, CFR and CIF all acceptable. Q4: What's the Payment Terms ? A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the machine, we will send machine photo and video for you to confirm. Q5: What's the MOQ? A: 1 set .(Only some low cost machines will be more than 1 set ) Q6.the warranty? The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for you within 48 hours.
