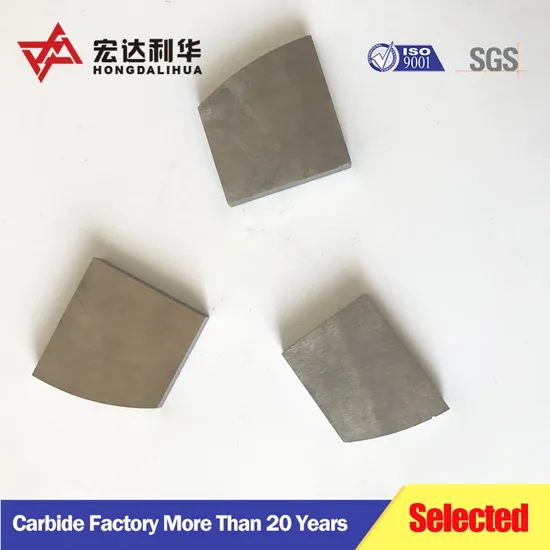

Non Standard Tungsten Carbide Turning Tools

Product Description

Non Standard Tungsten Carbide Turning Tools
Applications:
1.Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc. 2. Applicated for Aerospace, transportation, Medical equipment, military manufacturing, mould development, apparatus and instrument, etc.

Grade Information for non-standard tungsten carbide tool parts

Grade	Density g/cm3	T.R.S MPa	Hardness HRA	Performance & Application recommended
YL10.2	14.50	3400	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG11C	14.40	2260	87.5	Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc.
YG6X	14.90	1560	91.0	Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron.
YS2T	14.45	2800	92.5	Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick.
YG15	14.10	2400	86.5	Used for punch dies,stamping dies and wear resistance parts

Grade	Equal to ISO Category Number	Performance			uses
		Density	Bend Strength	Hardness
		G/Cm3	N/mm2	HRA
YG3	K01	14.9-15.3	≥1180	≥90.5	sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YG3X	K01	15.1-15.4	≥1300	≥91.5
YG6X	K10	14.8-15.1	≥1560	≥91.0	Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A	K10	14.7-15.1	≥1580	≥91.0
YG6	K20	14.7-15.1	≥1670	≥89.5	Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8	K20-K30	14.6-14.9	≥1840	≥89	Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YT15	P10	11.1-11.6	≥1180	≥91.0	Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel.
YT14	P20	11.2-11.8	≥1270	≥90.5	Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting.
YT5	P30	12.5-13.2	≥1430	≥89.5	Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting.
YW1	M10	12.7-13.5	≥1180	≥91.5	Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel.
YW2	M20	12.5-13.2	≥1350	≥90.5	Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel.

Other Products
Company Information
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products.
Our products sold to worldwide . We have built a long term business relationship with the customers from Italy, Portugal, Germany, Turkey, USA, Mexico, Russia, India, Australia and so on.
Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
Month capacity of 15Ton
We have sophisticated equipment, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine etc, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.

Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Payment:
Less than or equal to $1000: 100% advance via Paypal ,or Western Union
Over $1000: 30% T/T advance , Balance before shipment .

Contact Foreign Sales Manager: Coco
Mobile/: +86 13973352165 (available 24 hours.)
Website: http://lihuacarbide.en.made-in-china.com
Factory Address: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone, Zhuzhou, Hunan, 412000, China

---
