Product Details
Product Description
Product Description
Product Description

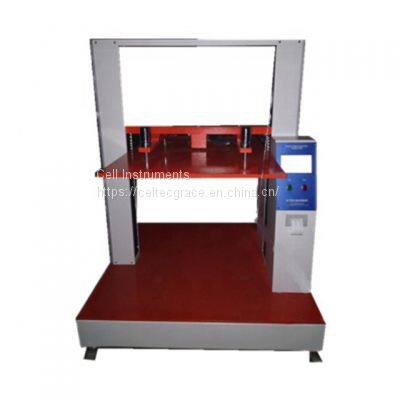

Box Compression Tester BCT tester is for the compression strength and stacking ability of medium and small size packaging like corrugated carton, bottle, tray, etc.
| Available test spaces
|
1
| 400mm(L)*600mm(W)*600mm(H)
|
2
| 600mm*800mm*800mm
|
3
| 800mm*1000mm*1000mm
|
4
| 1000mm*1200mm*1200mm
|
5
| 1200mm*1200mm*1200mm
|
Why this is ideal for compressive force testing
1. Touch screen operation
2. Microcomputer processing system, automatic measurement, test result intelligent judging, self-return
3. Auto data collecting and computing, 4. Embedded micro printer
Advantages
5. Real-time display of compression force, deformation and curve
6. Three test modes of compression resistance, stacking and compression at fixed time and pressure
4. Synchronous motor and accurate thread lead screw drive system
Pressure range
| 0-10KN(other load available)
|
Force resolution
| 0.1N, Display error: ±2%
|
Display variation
| ≤2%，Back to zero error: ±0.2%FS
|
Deformation Accuracy
| ±1mm
|
Compressing speed range
| 5mm/min～90mm/min
|
compressing speed
| 12mm/min
|
Stacking test speed
| 5mm/min
|
