US$15,000.00-18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
X/Y/Z Axes Travel
400/250/280mm
Machine Size
1510*1200*2010mm
Transport Package
Wooden Case
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

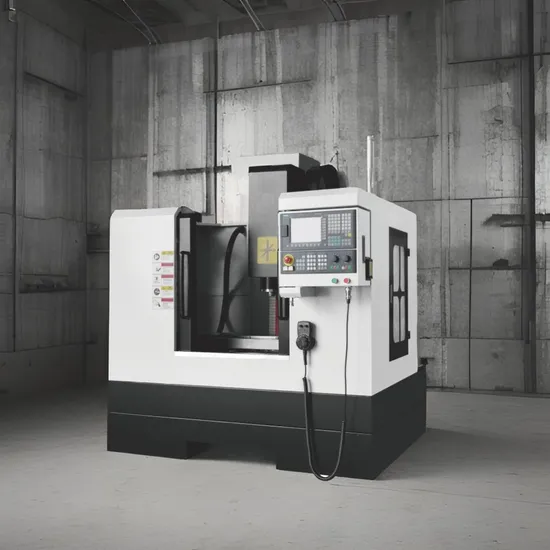

Product Description
- Adopt mature conventional CNC milling machine structure, good stability
- SWALLOW-TAIL shape HARD guideway
- Without tool magazine
Details:
| Item | Specification | Unit | BL-Y25 |
| Worktable | Table size | mm | 700×260 |
| T slot(NO./width/gap) | mm | 3/14/63 |
| X/Y/Z axes | X/Y/Z axes travel | mm | 400/250/280 |
| X/Y/Z axes ball screw(dia./pitch) | mm | 32/6 |
| Cutting feeding speed | m/min | 6~10 |
| Rapid moving speed | m/min | 15 |
| Positioning precision | mm | ±0.01 |
| Repeatable positioning precision | mm | ±0.008 |
| Spindle | Max. distance from spindle nose to worktable surface | mm | 380 |
| Distance from spindle center to column surface | mm | 250 |
| Spindle type | / | BT40 |
| Spindle motor | kw | 2.2(inverter) |
| Spindle speed | rpm | 6000 |
| Tool magazine | Tool magazine type | / | N/A |
| Others | Overall size(Half closed cover) | mm | 1510×1200×2010 |
| Overall size(Full closed cover) | 1760×1840×2010 |
| N.W.(Half/Full closed cover) | kg | 1300/1500 |
Main parts list:
| Item | Brand |
| Ball screw bearing | CHINA top-HRB P4 class/Z axes NSK |
| Ball screw | CHINA top |
| Dishing spring | GERMANY |
| Spindle unit | TAIWAN |
| Inveter | TAIWAN TECO/JAPAN YASKAWA |
| Booster cylinder | TAIWAN |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electricity parts | FRANCE-SCHNEIDER |
| Lubrication pump | Joint-venture |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Half closed cover
Optional configuration:
-GSK980MDc CNC Controller
-Step feeding motor
-Full closed cover
-4th axes
