ISD ISF SKD HYD Split Frame Pipe Cutting and Beveling Machine

Product Description

Split Frame Pipe Cutting and Beveling Machine
Overview

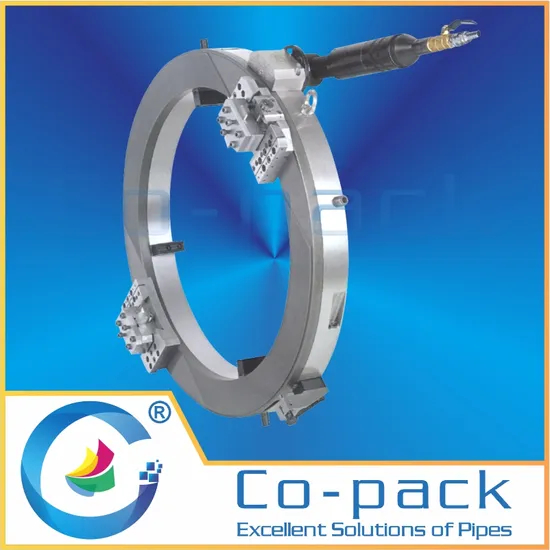

Standard split frame pipe cutting and beveling machine, designed to cut, bevel, single point, counterbore and face on the pipe, tube and flanges. It is a portable pipe cutting and beveling machine tools of clamshell style. Smartly designed, ability to split in half at the frame, easy to install on the pipe line. It is comprehensive used in pipework of oil, gas, food, petroleum, chemical, boiler, medicine machine, nuclear power, and power supply construction. 16 models are available in 6 inch (152.4mm) increments, with additional sizes available by special order.
Features and Advantages
16 models, working range for pipe OD 1"-48"
Non-standard model can be customized
Out-mounted style, clamping by multipoint jaws.
Split frame technology, easy to install on the pipeline.
Cold cutting and beveling, don't influence the pipe's material.
Auto feed, cutting and beveling at the one time, cost effective.
Varity of beveling shape: "U", "V", "Y", J", double "V", compound bevels.
Stationary ring is steel; rotation ring is aluminum, and steel optional
Electric, pneumatic, numerical control and hydraulic drive options are available.
Several different drive options are available to best position, the motor for a specific machining application.
It can be equipped a wide range of accessories to increase performance and expand
Capability
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
Model and Specification (Standard Split Frame)

Model				Pipe Capacity OD		Wall Thickness		Rotating
Electric	Pneumatic	NC	Hydraulic	mm	inch	mm		rpm
ISD-90	ISF-90	SKD-90	HYD-90	Ф20-90	3/8"-3"	30	-	34
ISD-168	ISF-168	SKD-168	HYD-168	Ф25-168	1"-6"	30	50	24
ISD-219	ISF-219	SKD-219	HYD-219	Ф50-219	2"-8"	30	50	23
ISD-273	ISF-273	SKD-273	HYD-273	Ф114-273	4"-10"	30	75	23
ISD-323	ISF-323	SKD-323	HYD-323	Ф168-323	6"-12"	30	75	23
ISD-355	ISF-355	SKD-355	HYD-355	Ф177-355	8"-14"	30	110	23
ISD-406	ISF-406	SKD-406	HYD-406	Ф254-406	10"-16"	30	110	22
ISD-457	ISF-457	SKD-457	HYD-457	Ф323-457	12"-18"	30	110	20
ISD-508	ISF-508	SKD-508	HYD-508	Ф355-508	14"-20"	30	110	20
ISD-559	ISF-559	SKD-559	HYD-559	Ф406-559	16"-22"	30	110	14
ISD-610	ISF-610	SKD-610	HYD-610	Ф457-610	18"-24"	30	110	14
ISD-762	ISF-762	SKD-762	HYD-762	Ф610-762	24"-30"	30	110	13
ISD-914	ISF-914	SKD-914	HYD-914	Ф762-914	30"-36"	30	110	11
ISD-1066	ISF-1066	SKD-1066	HYD-1066	Ф914-1066	36"-42"	30	110	10
ISD-1160	ISF-1160	SKD-1160	HYD-1160	Ф980-1160	38"-44"	30	110	9
ISD-1240	ISF-1240	SKD-1240	HYD-1240	Ф1040-1240	40"-48"	30	110	9

Above parameters just for reference only, not acceptance criteria.
Models and Capacity (Heavy Duty Split Frame)

Model				Pipe Capacity OD		Wall Thickness	Rotating
Electric	Pneumatic	NC/Electric	Hydraulic	mm	inch	mm	rpm
ISD-2412H	ISF-2412H	SKD-2412H	HYD-2412H	Ф305-610	12"-24"	≤110	14
ISD-3624H	ISF-3624H	SKD-3624H	HYD-3624H	Ф610-914	24"-36"	≤110	11
ISD-4836H	ISF-4836H	SKD-4836H	HYD-4836H	Ф914-1240	36"-48"	≤110	9
ISD-6048H	ISF-6048H	SKD-6048H	HYD-6048H	Ф1220-1524	48"-60"	≤110	5
ISD-7560H	ISF-7560H	SKD-7560H	HYD-7560H	Ф1524-1910	60"-75"	≤110	4
ISD-9075H	ISF-9075H	SKD-9075H	HYD-9075H	Ф1910-2290	75"-90"	≤110	4
ISD10590H	ISF-10590H	SKD-10590H	HYD-10590H	Ф2290-2680	90"-105"	≤110	3
ISD-120105H	ISF-120105H	SKD-120105H	HYD-120105H	Ф2680-3050	105"-120"	≤110	2

Above parameters just for reference only, not acceptance criteria.
Model and Specification (Mini Split Frame)

Model		Pipe Capacity OD		Wall Thickness	Rotating
Electric	Pneumatic	mm	inch	mm	rpm
ISDS1	ISFS1	Ф12.5~25.4	0.5"~1"	≤15	34
ISDS1.5	ISFS1.5	Ф25.4~38.1	1"~1.5"	≤15	24
ISDS2	ISFS2	Ф38.1~50.8	1.5"~2"	≤15	23
ISDS2.5	ISFS2.5	Ф50.8~63.5	2"~2.5"	≤15	23
ISDS3	ISFS3	Ф63.5~76.2	2.5"~3"	≤15	23
ISDS3.5	ISFS3.5	Ф76.2~88.9	3"~3.5"	≤15	23
ISDS4	ISFS4	Ф88.9~101.6	3.5"~4"	≤15	20
ISDS5	ISFS5	Ф101.6~127	4"~5"	≤15	20
ISDS6	ISFS6	Ф127~152.4	5"~6"	≤15	14

Above parameters just for reference only, not acceptance criteria.
Power Supplies

Electric Convenient power supply Stable performance Popular choice Electric requirement: 220-240V 1PH 50/60HZ Power: 1.43KW, 1.7KW, 2.4KW Double motor for big model or heavy duty	Pneumatic Explosion Proof Stable performance Easy to maintenance Air requirement: 1500-2000L/min @0.63-0.8Mpa Power: 2HP, 3HP, 4HP Double motor for big model or heavy duty
NC Powerful drive, high efficiency Low noise, stable performance Ideal for heavy wall thickness & large size pipe Electric requirement: 230V 1PH 50/60Hz; 380V 3PH 50/60Hz Power: 2.0KW or 3.0KW Double motor for big model or heavy duty	Hydraulic Powerful drive, high efficiency Stable performance, low noise, anti-explosion Ideal for heavy wall thickness & large size pipe Hydraulic requirement: 28-50L/min @13Mpa Electric requirement: 380V 3PH 50/60Hz Rated Pressure: 13MPa Rated flow: 28L/min Max. Torque: 380NM

Tooling
Form Style and Insert Style
HSS, HSS Co, Carbide
Make more tooling on demand

Form Style Material: M42 and M35 Type: Sever, bevel, double bevel compound bevel,counter bore Angle: 0°, 30°, 37.5° Double 30°, 37.5°+10° Size: 90mm, 150mm, 200mm	Insert Style Material: Holder HSS Insert: HSS-Co or Carbide Type: Sever, bevel, double bevel, compound bevel Angle: 0°, 30°, 37.5°, Double 30°, 37.5°+10° Size: 90mm, 150mm, 200mm

---
