Compact Construction (WZ45-16) Backhoe Loader Tbl15-26

Product Description

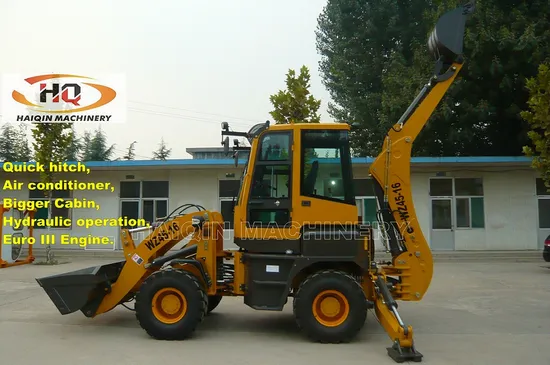

WZ45-16 Backhoe loader:
Product advantages:
1. Cab is bigger and more elegant than common backhoe loaders. We adopt laminated safety glass to have a wider and brighter space and also to make view more wider. The cab is with three doors, and can tilt forward by hydraulic system for convenient maintain. 2. Position of oil tank is reasonable, it is very easy to fuel up. 3. Adopt famous brand hydraulic parts, long service life and stable performance. 4. Adjustable seat, operation is convenient and operator will feel comfortable on the seat. 5. The cab is with air conditioner to make air in cab fresh. 6. Hydraulic steering system make operation easier. Hydraulic walking system with domestic best gear pump can realize stepless speed change. 7. Both have the all abilities of loader and excavator. 8. Work efficiency is high because of superior machine performance. 9. Can select other attached accessories, such as snow shovel plate, sweeper, breaking hammer, clamp equipment to meet customer's different requirements.

Item		Unit	Parameter
L×W×H		mm	6000×1850×2900
Overall Weight		kg	5000
Backhoe Parameter	Rated Backhoe Bucket Capacity	m3	0.3
	Max. Digging Depth	mm	3400
	Max. Digging Height	mm	5000
	Max. Digging Radius	mm	4600
	Turning Angle of Movable Arm	°	180
Loading Parameter	Rise Height	mm	3700
	Discharge Height	mm	2700
	Min. Turning Radius	mm	4800
	Discharge Distance	mm	1000
	Rated Loading Weight	kg	1600
	Rise Time of Movable Arm	s	3.5
	Fall Time of Movable Arm	s	2.5
	Comprehensive Time	s	7
Engine Model		Xinchai A498BT1
Rated Power of Engine		KW	36.8
Engine Flux		ml/r	40
Work Pressure		Mpa	16~18
Max. Grade Ability		%	25
Walking Speed		km/h	18~28
Min. Ground Clearance		mm	260
Wheel Base		mm	2000
Tread		mm	1530
Tire model		mm	20.5-16

---
