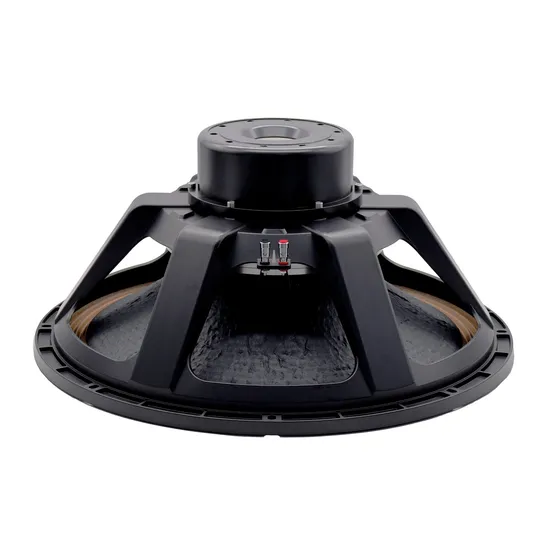

24′′ Loudspeaker 6000W PRO Audio Sound PA System 24 Inch Neodymium Subwoofer

Product Description

24'' Loudspeaker 6000W Pro Audio Sound PA System 24 inch Neodymium Subwoofer OEM Applicable use Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers. Product Paramenters

TYPE	ND SUBWOOFER
Nominal Diameter	610/24	mm/in
Rated impedance	8	ohm
Minimum Impedance	7.2	ohm
AES Power Handing	3000	Watts
Peak Power Handing	6000	Watts
Sensitivity	98	dB
Frequency Range	20-1000	Hz
Voice Coil Diameter	153/6.0	mm/in
Winding Material	Copper
Former Material	Glass Fibre
Winding Depth	37/1.45	mm/in
Megnetic Gap Depth	15/0.59	mm/in
Megnetic Material	Neodymium Inside Slug

THIELE & SMALL PARAMETERS
Resonance frequency	Fs	26	Hz
Dc resistance	Re	5.3	ohm
Mechanical factor	Qms	5.48
Electrical factor	Qes	0.34
Total factor	Qts	0.32
BL factor	Bl	36.6	T.M
Effective Moving mass	Mms	516	g
Effective Cas air load	Vas	460	liters
Effective piston area	Sd	2181	cm2
Inductance	Le	2.2	mh
Max linear excursion	Xmax	±15	mm
	EBP	76	Hz

MOUNTING AND SHIPPING
Overall Diameter	620/24.4	mm/in
Bolt Circle Diameter	595/23.4	mm/in
Mount Baffle Cut-out	572/22.5	mm/in
Speaker Depth	279/10.98	mm/in
Flange And Gasket Thickness	19/0.74	mm/in
N.W.(1pc)	21.3	kg
G.W. (1 pcs)	24.8	kg
Shipping Size (1pcs)	650x650x350 mm	25.5x25.5x13.7 in

Details Images

Welcome to CONTACT US
Company Introduction

Why choose us Have a product development and design team
Our R&D personnel have 20 years of design and development experience
Development assistance software: FINEMOTER, LMS, CLIO, COMSOL
TJ Audio Speakers is favored and recognized by customers for its high-quality products and beautiful prices. We look forward to receiving your inquiries! Customer Case
FAQ
Q1: How can I get sample?
A: If you need a sample test, please contact us. We will make it according to your requirements. But you may need to pay the sample fee and its shipping fee. Q2: How much is the shipping cost for samples?
A: Different sample have different weights and packaging sizes. Please contact us for details.
Q3: Can I print my logo on the product and packaging?
A: Of course you can. Just need you to send us your logo design and authorization documents, we will make it on the product and packaging according to your request for your confirmation.
Q4: Can you produce according to customer's design?
A: Yes. We mainly do OEM/ODM services.
Q5: How are your products packaged?
A: Generally, we pack in white boxes and brown cartons.
Q6: How to strictly control the quality of products?
A: We have strict quality control on products from raw materials to production process, and all products are tested before leaving the factory. Packing&Shipping
Packing: 1)Neutral Packing 2)Strong Carton 3)Reinforce the edge with hard paper 4)Put into another shipping carton Shipping: 1)Ocean Transport 2)Air Transport 3)Rail Transport 4)Road Transport 5)International Express

---
